HP Elite x2 G1 1012 Speaker Replacement Guide

Geschrieben von: Hanif Norhisham
  • Kommentare: 1
HP Elite x2 G1 1012 Speaker Replacement Guide

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

If the speaker produce buzzing, crackling sound or not operational, there might be a problem with your speaker. This guide will help you go through the process of replacing the faulty speakers.

Before going through the replacement process, make sure your tablet is turned off and not connected to the power cord.

  1. bpDqqSqxnFFGjaQq
    bpDqqSqxnFFGjaQq
    NWYi5B1ACxKX3NIx

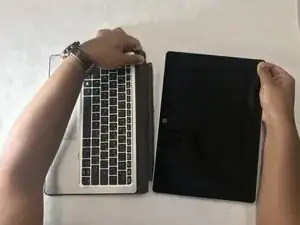

    • Detach keyboard from the screen.

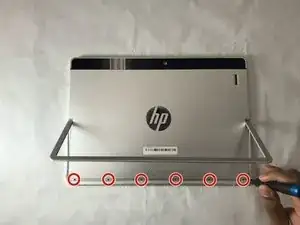

  2. QDbtfkvCAigoHG66

    • While the screen is facing down, remove six 3.0 mm Torx T5 screws under the stand.

    • The screws were not available on our device, so we do not know what kind of screwdriver to use.)

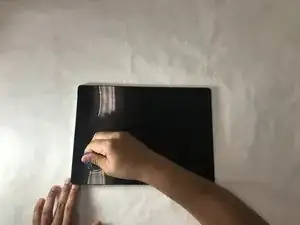

  3. 2SZVQKgJBAfnBPrH
    2SZVQKgJBAfnBPrH
    TJTkJ4gYFoTvGTEe
    AIWANULeUsQWLEt1

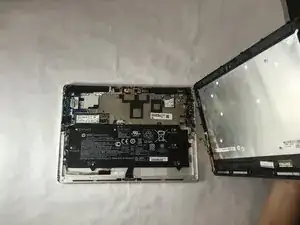

    • Use a suction cup to remove the screen panel.

    THIS IS WRONG!! There is a display cable that needs to be watched for.

    Check Step 5 in HP Elite x2 G1 1012 Display Replacement

    DunCanP -

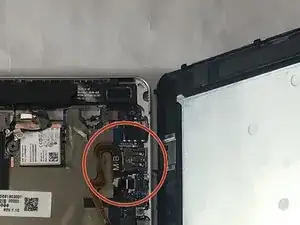

  4. RMgj1XNKeXeEZ36J
    RMgj1XNKeXeEZ36J
    ODhH6AExWl2JoqOn
    pG25yJAXRB3lR3e2

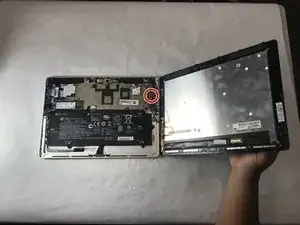

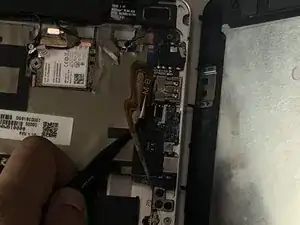

    • Detach flex cable from motherboard using tweezers.

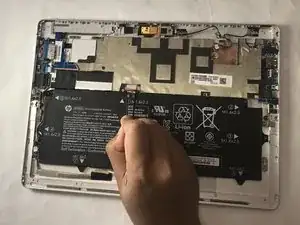

  5. LiRPkYsByRAXO1qW

    • Unplug the battery wire attached to the motherboard using tweezers.

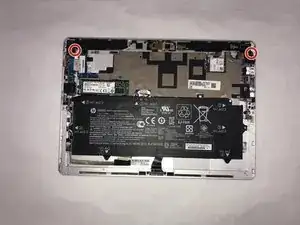

  6. 1wVtq5ioGMZNmVB5
    1wVtq5ioGMZNmVB5
    FYC3QrCXMMkveWoS
    oNdOBtLUGH1qUrSL

    • Remove two 2.7 mm screws using the Phillips #0 screwdriver.

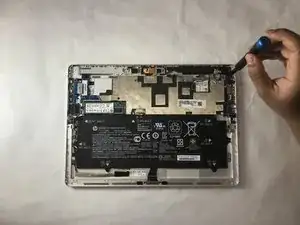

  7. E6JAJUZqAFI43Hfb
    E6JAJUZqAFI43Hfb
    JcLlQJCvmFLdWeTI

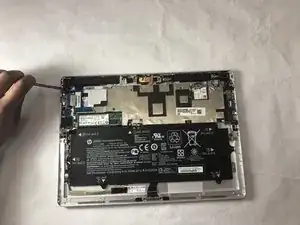

    • Unplug the speaker wire attached to the motherboard.

  8. FGDPTG1QVtXNY5kW
    FGDPTG1QVtXNY5kW
    aAtc1NygIVsODXqk

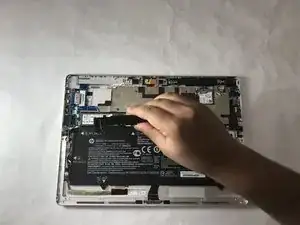

    • Detach the left speakers.

  9. lZiQTA5htncg2h4C
    lZiQTA5htncg2h4C
    bffMsblV1EroiRcT

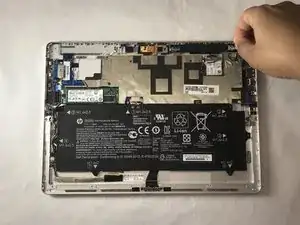

    • Detach the two stickers highlighted from right speaker.

  10. Ps3RfWD2dB4oCUpt
    Ps3RfWD2dB4oCUpt
    Ex6Mah2H3yKJkYMG

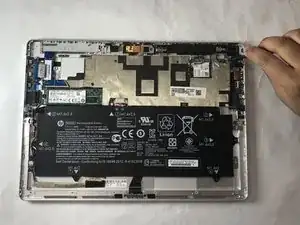

    • Detach the right speaker cables from the motherboard using tweezers.

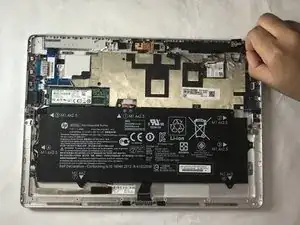

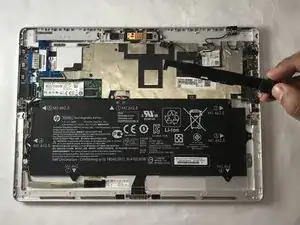

  11. 2vuRBXWat3teEZZN
    2vuRBXWat3teEZZN
    eIO1PpKC1kCdyEos

    • Detach the right speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
