HP Elite x2 G4 Battery Replacement

Open the kickstand.

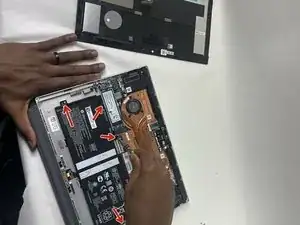

Remove the four 3 mm T5 Torx-head screws that secure the display assembly.

Use a suction sup to carefully detach the display assembly in the following order: top-right corner, top-left corner, bottom-right corner and bottom-left corner.

Slowly lift the display panel until you have access to the battery connector on the motherboard (approx. 90 degrees).

Disconnect the battery cable from its motherboard connector.

Remove the tape that covers the touchscreen and display panel ZIF connectors.

Disconnect the touchscreen ribbon cable from the motherboard.

Remove the display panel assembly.

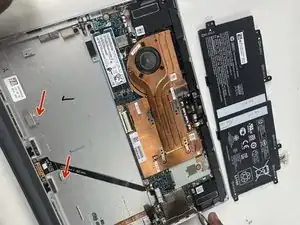

Remove the six 3.5 mm Phillips #1 screws that secure the battery to the display enclosure.

Carefully lift the top edge of the battery off of the alignment pins.

Remove the battery.

Slide the bottom edge out from retention tabs on the display enclosure and remove.
