Use this guide to replace the fan on the HP Elitebook 1040 G4. The fan is essential for expelling heat away from the laptop and keeping the hardware running smoothly. This prevents computers from overheating, shutting down, and damaging components. The fan may be producing excessively loud noise or creating an odd smell which may indicate the fan needs replaced. Although the fan can be replaced without removing the battery, we advise removing the battery before you begin to ensure safety and avoid any electrical issues.
To complete this guide, you will need a #T5 Torx head screwdriver and a Philipps #0 and #00 screwdriver.
Before beginning, be sure to completely power off your computer.
-
-

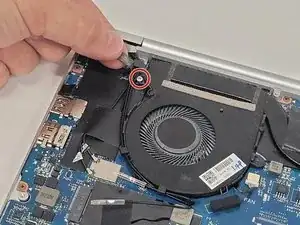

Use a T5 Torx screwdriver to remove the eight 5 mm screws securing the back cover to the chassis.
-
-
-

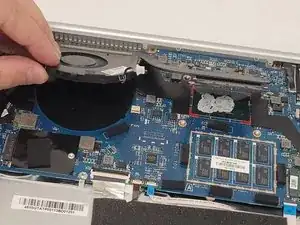

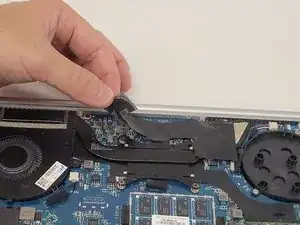

Remove the electrical tape to expose the heat sink screws.
-

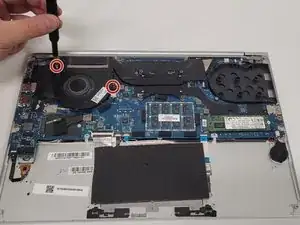

Using the Phillips #0 screwdriver, unscrew the four screws securing the heatsink to the motherboard.
-

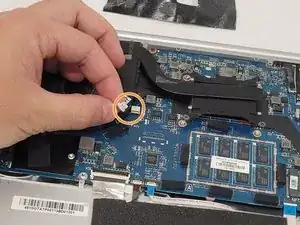

Carefully disconnect the pin connector by pulling it from its slot.
-
To reassemble your device, follow these instructions in reverse order.
