Einleitung

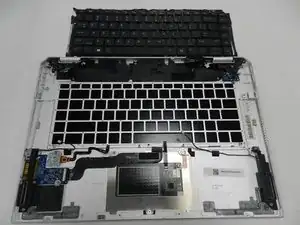

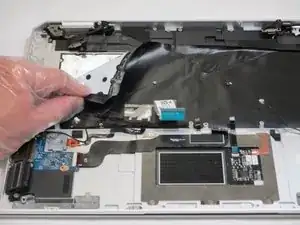

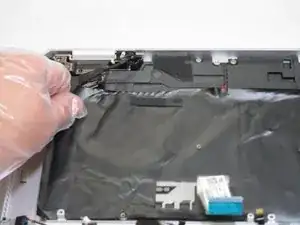

This guide will show the reader how to replace the keyboard panel on the HP EliteBook 1050 G1. The keyboard replacement is not very difficult, just tedious. The battery is removed for this guide so, there is not any danger. The reader will need the tools shown in the description.
-
-
Remove the two 5.5mm screws with a Torx T8 driver.
-
Remove the five 8.7mm screws with a Torx T8 driver.
-
Remove the two 6.6mm screws with a Torx T8 driver.
-

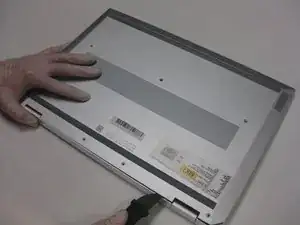

Pry open the backplate with a Jimmy.
-
-
-

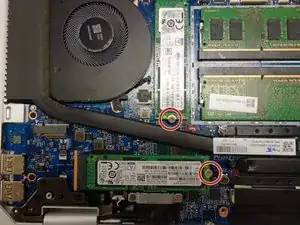

Remove the two 1.9mm screws from the SSDs with a Phillips #0 driver.
-
Disconnect the two PCIe SSDs by sliding them out of each port.
-
-
-

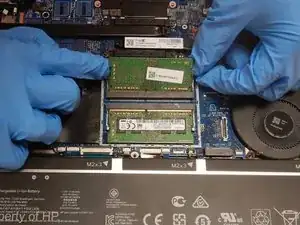

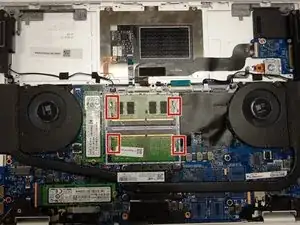

Pull the clips on either side of the RAM chip away from each other using your fingers.
-
Slide the RAM chips out of their respective slots.
-
-
-

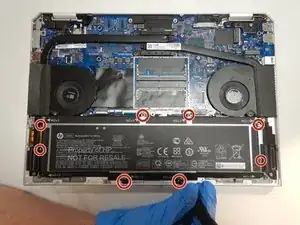

Remove eight 4.5 mm screws from the battery with a Phillips #1 screwdriver.
-

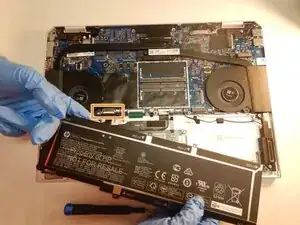

Disconnect the white tipped battery cable from the motherboard.
-
-
-

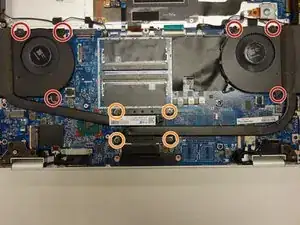

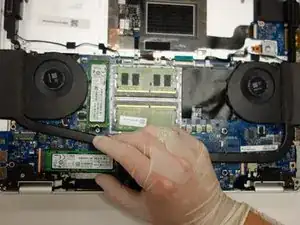

Remove the six 4.5mm screws from the fan assembly using a Phillips #00 screwdriver.
-

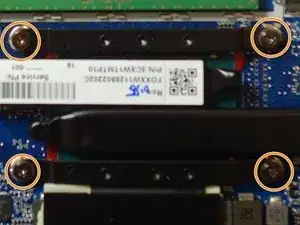

Unscrew four 3.6mm screws from the heatsink assembly with a Phillips #00 screwdriver.
-

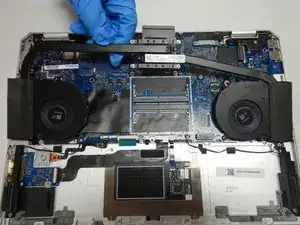

Remove the fan assembly.
-
-
-

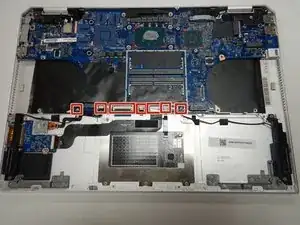

Unplug the seven ZIF connecters from the motherboard by flipping up the black switches with a spudger and pulling out the cables.
-
-
-

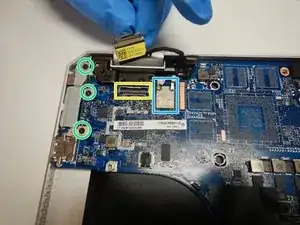

Remove two 1.9mm screws from the display cable bracket using a Phillips #00 driver.
-
Remove the two connectors on the right side gently.
-
Remove the connector on right side of motherboard.
-
Remove the three 4.5mm screws using a Phillips #00 driver and remove the bracket.
-

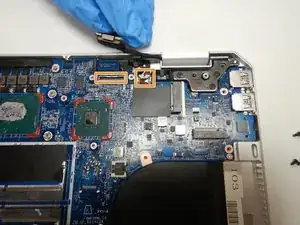

Remove the two coaxial cables.
-
-
-

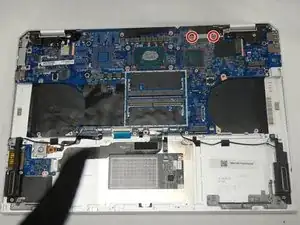

Remove the two 3mm screws using a Phillips #00 driver.
-

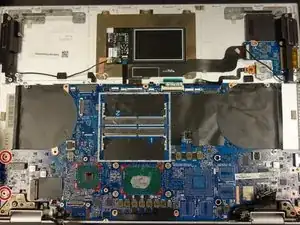

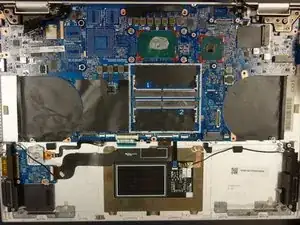

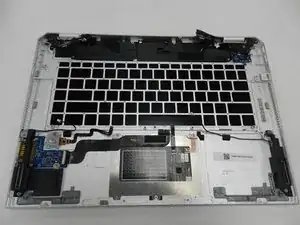

Remove the motherboard by lifting it up and out of the case.
-
To reassemble your device, follow these instructions in reverse order.
