How to replace the battery of a HP EliteBook 745 G4 laptop. The images and information in this guide were taken from this computer's service manual.
Werkzeuge
-
-
Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
-
Disconnect the power from the computer by unplugging the power cord from the computer.
-
Disconnect all external devices from the computer.
-
Turn the computer upside down on a flat surface.
-
-
-

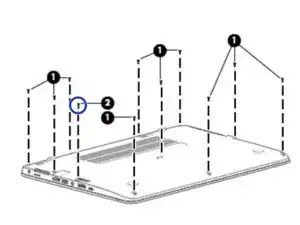

Remove the 10 rubber plugs from the bottom cover.
-

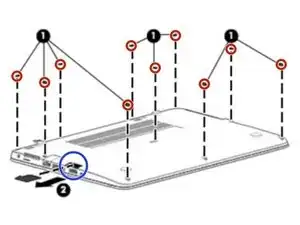

Remove the SD card blank from the bottom cover.
-
-
-

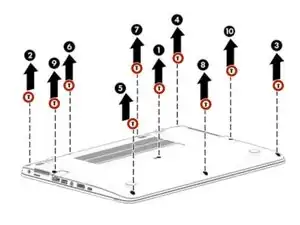

Remove the 10 Phillips PM2.5x5.0 screws in the following order.
-
After you remove the PM2.5×5.0 screws, remove the PM2.0×7.0 screw.
-
-
-

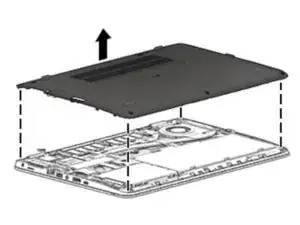

Pry up on the top (near the display hinge) of the bottom cover to disengage it from the computer. Consider using a spudger.
-

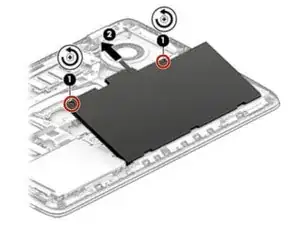

To replace the battery & reassemble your device, follow these instructions in reverse order.
