HP EliteBook 820 G3 RAM Replacement

Geschrieben von: Nubia Pineda
  • Kommentare: 0
HP EliteBook 820 G3 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

7 Minuten

Einleitung

This guide will show you how to replace the RAM in the HP EliteBook 820 G3 laptop. Before beginning this guide, ensure to unplug your device from the electric outlet and charging port. Power off the device completely by holding down the power key.

  1. KetrUkUgGkdOmqVe
    KetrUkUgGkdOmqVe
    gAZvEYTxUgZO3Ex4

    • Remove the eleven 3 mm screws with a Phillips #00 screwdriver.

    • Keep track of where the screw covers were attached to as there are four different sizes.

  2. tGeYL5HJPqKBRl5R
    tGeYL5HJPqKBRl5R
    wS5R2vATLpwd6cGf

    • Remove the SD card blank and the single 3 mm screw beneath it using a Phillips #00 screwdriver.

    • Lift off the back cover with your hands.

  3. 5CVgA3XQgSmoAAXb
    5CVgA3XQgSmoAAXb
    LmJJYiV2Lb32LDOX
    maWqiCjBEmWthKYr

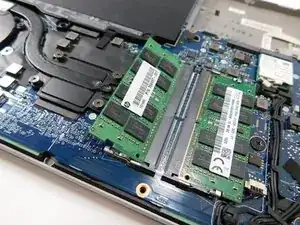

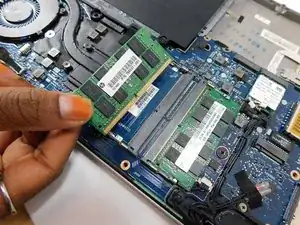

    • Pull the two clips on either side of the RAM sideways at the same time.

    • The top half of the stick will pop out of its plate.

    • Pull the RAM stick out.

    • Repeat this step with the other RAM stick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
