HP EliteBook 840 Aero G8 Heat Sink and Fan Replacement

Geschrieben von: Robert Hart
  • Kommentare: 0
HP EliteBook 840 Aero G8 Heat Sink and Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the heat sink and fan of your HP EliteBook 840 Aero G8. The heat sink and fan need to be replaced if your device is overheating and not performing properly. Be sure to remove the battery before removing the heat sink and fan, as potential for electric shock is present.

  1. KDGTyDvrjtDh16vL
    KDGTyDvrjtDh16vL
    FIuXndAH5W56TKUG

    • Use a JIS #0 screwdriver to unscrew the three 6.73 mm case retention screws.

    • Use a JIS #0 screwdriver to unscrew and remove the two 8.76 mm screws.

  2. WiUArHlCs55Dhdtn
    WiUArHlCs55Dhdtn
    SQKstaATrHhVi3mc

    • Use the Halberd Spudger to remove the cable running along the bottom of the battery

  3. 4JZdThcW3yP5i1Lm
    4JZdThcW3yP5i1Lm
    qC4wFXeRhqTYM2Ec

    • Disconnect the cable connected the battery to the motherboard

  4. mLYGGtlSbHKkYiDb
    mLYGGtlSbHKkYiDb
    HICtBt4RBaaTHrR3

    • Use a JIS #0 screwdriver to unscrew the four 7 mm screws that secure the battery.

  5. 5HKkCkKigpNpJeDE

    • Slide the battery out of the clips to remove it from the laptop.

  6. HY1BIDeHJtVB2wnr
    HY1BIDeHJtVB2wnr
    xyZTUlNjP1jEVB4c

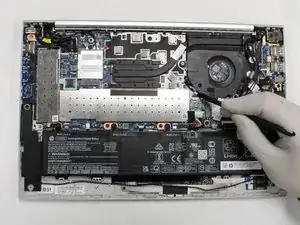

    • Unplug the fan cable from the motherboard.

  7. ubDOYEN12IlgfBdU
    ubDOYEN12IlgfBdU
    jxoMMusIS4pWILbK

    • Use the JIS #0 screwdriver to remove the three 5.33 mm screws that secure the fan.

  8. pLj4KxJRODqEE3Yp
    pLj4KxJRODqEE3Yp
    ds6HI2wcuKSGRWHb

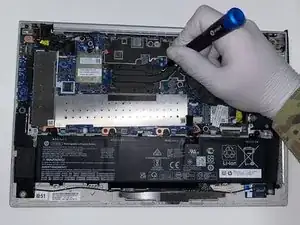

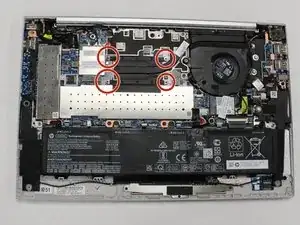

    • Use a JIS #0 screwdriver to remove the four 4.06 mm screws from the heat sink.

  9. GPwSxVd1XXaPuViL

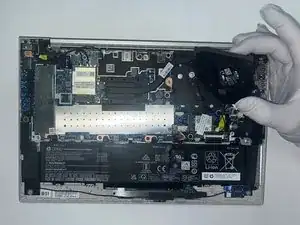

    • Lift the fan free.

  10. kbghCtejeush5iOr

    • Lift the heat sink free.

Abschluss

To reassemble your device, follow these instructions in reverse order.
