HP EliteBook 840 Aero G8 Wi-Fi Card Replacement

Geschrieben von: Robert Hart
  • Kommentare: 0
HP EliteBook 840 Aero G8 Wi-Fi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

Use this guide to replace your HP EliteBook 840 Aero G8 Wi-Fi Card. The Wi-Fi Card must be replaced when your PC stops connecting to Wi-Fi connection, or has slow, unreliable connection. Keep in mind to remove the battery as to avoid any injury from shock.

  1. KDGTyDvrjtDh16vL
    KDGTyDvrjtDh16vL
    FIuXndAH5W56TKUG

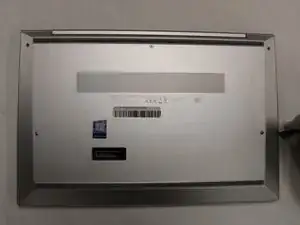

    • Use a JIS #0 screwdriver to unscrew the three 6.73 mm case retention screws.

    • Use a JIS #0 screwdriver to unscrew and remove the two 8.76 mm screws.

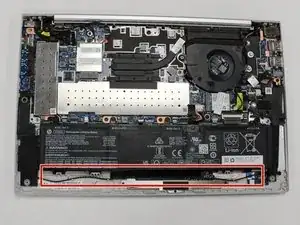

  2. WiUArHlCs55Dhdtn
    WiUArHlCs55Dhdtn
    SQKstaATrHhVi3mc

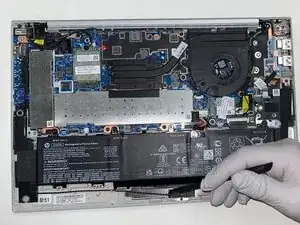

    • Use the Halberd Spudger to remove the cable running along the bottom of the battery

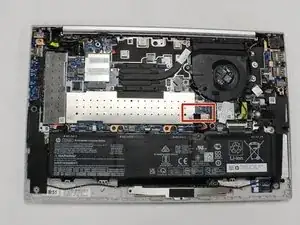

  3. 4JZdThcW3yP5i1Lm
    4JZdThcW3yP5i1Lm
    qC4wFXeRhqTYM2Ec

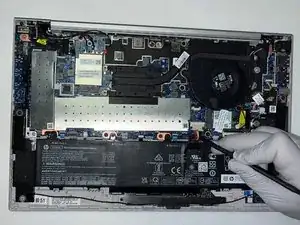

    • Disconnect the cable connected the battery to the motherboard

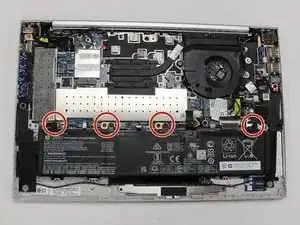

  4. mLYGGtlSbHKkYiDb
    mLYGGtlSbHKkYiDb
    HICtBt4RBaaTHrR3

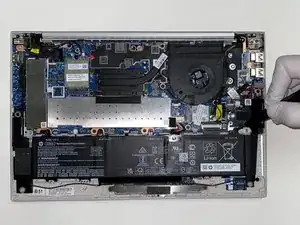

    • Use a JIS #0 screwdriver to unscrew the four 7 mm screws that secure the battery.

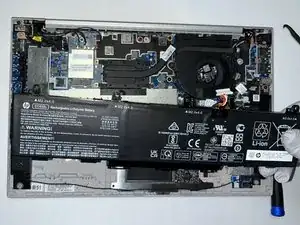

  5. 5HKkCkKigpNpJeDE

    • Slide the battery out of the clips to remove it from the laptop.

  6. eBnjWqlKOQeqlXBR
    eBnjWqlKOQeqlXBR
    L3eQFWdTnNiFIXNg

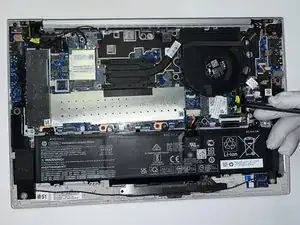

    • Use the hook end of the halberd spudger to remove the black and white antenna cables connected to the Wi-Fi card

  7. xFeKQ4hEnQAnk5JM
    xFeKQ4hEnQAnk5JM
    s2jlupoYOpKgaCkI

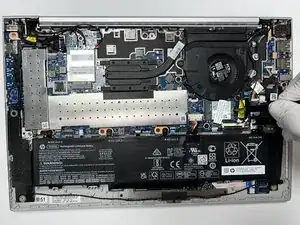

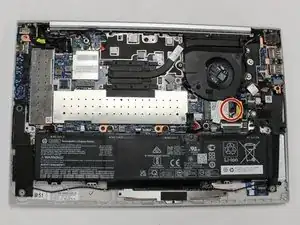

    • Use a JIS #0 screwdriver to unscrew the single 2 mm screw that secures the Wi-Fi card.

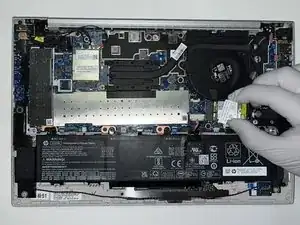

  8. fELWRZn2fgTeIBxv

    • Disconnect the WiFi card and gently pull it horizontally to free it from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
