This guide is to instruct you in the proper removal and replacement of the Heatsink in an HP EliteBook 840 G7. Use this guide if your computers Heatsink stops working.
-
-
Use the Phillips # 1 screwdriver to remove the five 1.2 mm screws from the back cover of the laptop.
-
-
-
Use your Phillips #1 screwdriver and remove the four 1.2 mm screws that secures the battery into place.
-

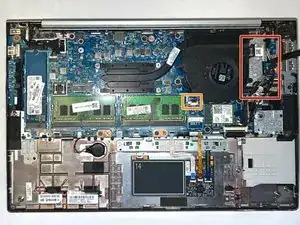

Remove the connector that connects the battery to the motherboard.
-
-
-

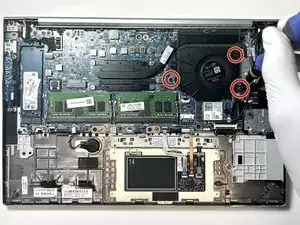

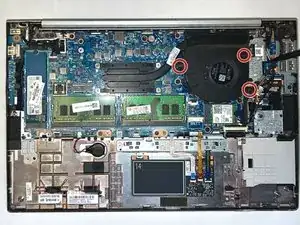

Use a Phillips # 1 screwdriver to remove the three 5mm screws from the fan housing.
-
Remove the fan from computer.
-
-
-

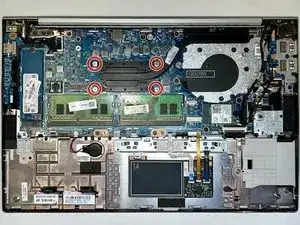

Use a Phillips # 1 screwdriver to remove the four 4mm screws from the heatsink.
-

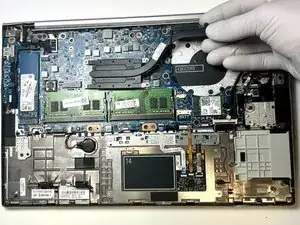

Remove the heat sink from computer.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
