This guide is to instruct you in the proper removal and replacement of the Trackpad in an HP EliteBook 840 G7. Use this guide if your computers Trackpad stops working.
-
-
Use the Phillips # 1 screwdriver to remove the five 1.2 mm screws from the back cover of the laptop.
-
-
-
Use your Phillips #1 screwdriver and remove the four 1.2 mm screws that secures the battery into place.
-
Remove the connector that connects the battery to the motherboard.
-
-
-

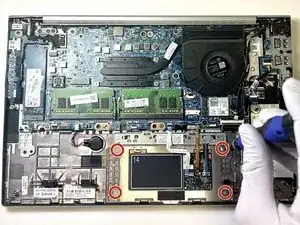

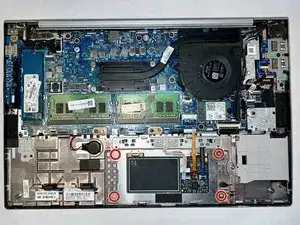

Use the Philips # 1 screwdriver to remove the four 2.2mm screws securing the track pad assembly.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
