HP EliteBook 840 G7 Wireless Card Replacement

Geschrieben von: James Kegan Roush
  • Kommentare: 0
HP EliteBook 840 G7 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

2 Minuten

Einleitung

This guide is to instruct you in the proper removal and replacement of the Wireless Card in an HP EliteBook 840 G7. Use this guide if your computers Wireless Card stops working.

  1. ucM3behWmpYyIT6p

    • Turn the laptop on its back.

  2. 6u3HMJobmWWkrrAN

    • Use the Phillips # 1 screwdriver to remove the five 1.2 mm screws from the back cover of the laptop.

  3. dDSepiSZuRHfj1gf

    • Remove the back cover to expose the hardware.

  4. SRAvgNvW1VZkgkZR
    SRAvgNvW1VZkgkZR
    jncbWlfOTroIdqCo
    vKgxC3guLhwv6Tia

    • Use your Phillips #1 screwdriver and remove the four 1.2 mm screws that secures the battery into place.

    • Remove the connector that connects the battery to the motherboard.

  5. JK55dFaDSufpEedR
    JK55dFaDSufpEedR
    dNLPsXMQtok3EH3C
    FWAXiRrI65bpbTNW

    • Lift up the battery with you hands or tools.

  6. 1kDpsZxkTUmHZFEJ

    • Detach both wires from the wireless card.

  7. UgMTYXDGUrJfdMsN
    UgMTYXDGUrJfdMsN
    svACGx2VxExcVgLQ

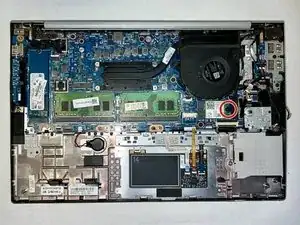

    • Use a Phillips # 1 screwdriver, remove the one 2.5 mm screw securing the wireless card.

  8. ETZ6jyg64kiJEVIC

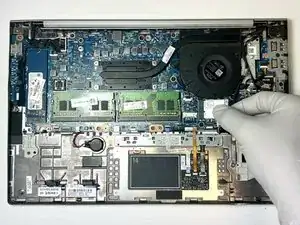

    • Remove the wireless card

Abschluss

To reassemble your device, follow these instructions in reverse order.
