HP EliteBook 850 G3 Display Assembly Replacement

Geschrieben von: Annabeth Grover

Kommentare: 2

HP EliteBook 850 G3 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

If your HP EliteBook 850 G3 display assembly is malfunctioning use this guide to replace it. The display screen on your computer is the panel that is inside the device, which displays the image. If you are experiencing a blank screen on a powered computer or a gray flickering screen, be sure to first rule out troubleshooting options. Then Use this display assembly guide to repair a broken screen display. Before beginning, make sure to power off your laptop completely and disconnect from any external power source. Before using this guide, feel free to check out the troubleshooting page to see if any issues can be resolved without a replacement.

Werkzeuge

Schritt 1

Turn off your laptop before starting.
Flip the laptop over so the model stickers face up.

Schritt 2

Use a Phillips #0 screwdriver to remove eleven 5.7mm screws.

Schritt 3

Insert the iFixit opening pick underneath the plastic back of the laptop. Use force to pry the back off.

Schritt 4

Use the Phillips #0 screwdriver to remove the two battery screws.
The two battery screws are captured screws and do not come out.

Schritt 5

Lift and pull the flap located at the top of the battery to remove it.

Schritt 6

Turn off your laptop before starting
Flip the laptop over so the model stickers face the ceiling.

Schritt 7

Use a Phillips #0 screwdriver to remove eleven 5.7mm screws.

The screw on the far left middle, under the card cover, is a longer screw.

martin rodley - 14/02/21

Schritt 8

Insert the iFixit opening pick underneath the plastic back of the laptop. Use force to pry back off.

Schritt 9

Use the Phillips #0 screwdriver to remove the 3.3mm screw on the WiFi card.

Schritt 10

Slide out the WiFi card.

Schritt 11

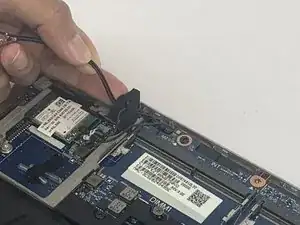

Disconnect the coaxial cables wires from the WiFi card.

Schritt 12

Gently unclip the plastic frame.

Schritt 13

You can use a Phillips #0 screwdriver to unscrew the four captive screws located near the fan and heatsink assembly.

Schritt 14

Carefully remove the connector for the fan.

Schritt 15

You can now carefully remove the fan and heatsink assembly from the laptop.

Schritt 16

Use the Phillips #0 screwdriver to remove the 7.7mm screw and six 5.8 mm screws from the corners inside the laptop.

Schritt 17

Use the Phillips #0 screwdriver to remove the 5.7 mm screw under the plastic frame.

Schritt 18

Use the opening pick to unplug the cable with the black tab on top.

Schritt 19

Disconnect wire over gold tape and remove tape. You will have to peel the wire up to get to the tape.
The tape is not reusable.

Schritt 20

Remove the coaxial cables from the wifi card and from clear plastic holds. Remove the black tape and slip out from black clip.
This tape is not reusable.
