HP EliteBook 850 G3 WiFi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

4 Minuten

Einleitung

If your HP EliteBook 850 G3 laptop not connecting to the internet, use this guide to replace the wifi card in your device. Wireless Internet cards, also known as Local Area Network, or LAN, cards, are one of the many types of adapter cards that add capabilities to your computer. If the wifi card is faulty your laptop will not connect with the internet. Before beginning, make sure to power off your laptop completely and disconnect from any external power source. Before using this guide, feel free to check out the troubleshooting page to see if any issues can be resolved without a replacement.

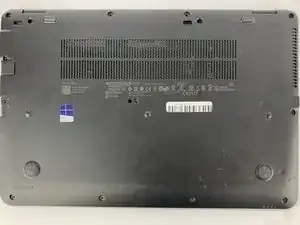

  1. OEjhhFBBTomSHhjC

    • Turn off your laptop before starting

    • Flip the laptop over so the model stickers face the ceiling.

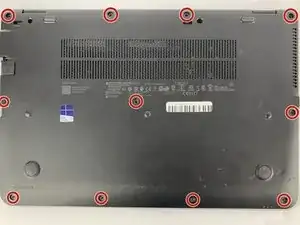

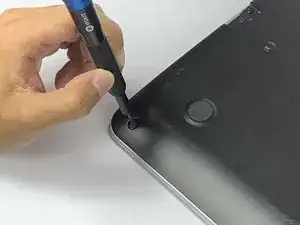

  2. T1fMmYE2uiNQeGBA
    T1fMmYE2uiNQeGBA
    dCdM2PwLHbMAeQTU

    • Use a Phillips #0 screwdriver to remove eleven 5.7mm screws.

    The screw on the far left middle, under the card cover, is a longer screw.

    martin rodley -

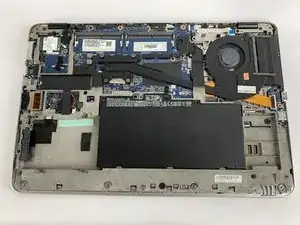

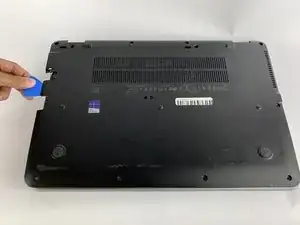

  3. aeZ4QbbENcWQl1an
    aeZ4QbbENcWQl1an
    w1gyGXTLracxUcKt

    • Insert the iFixit opening pick underneath the plastic back of the laptop. Use force to pry back off.

  4. PaSNpZW2isgVaMAT

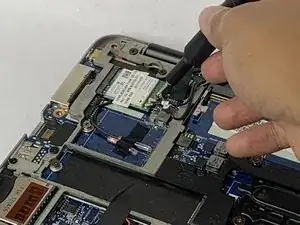

    • Use the Phillips #0 screwdriver to remove the 3.3mm screw on the WiFi card.

  5. cmxcqQG6oyRdSOP4
    cmxcqQG6oyRdSOP4
    eD6def322dT4SWfv

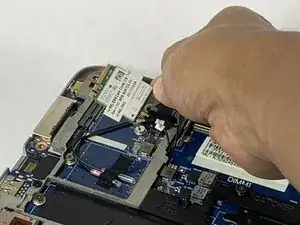

    • Slide out the WiFi card.

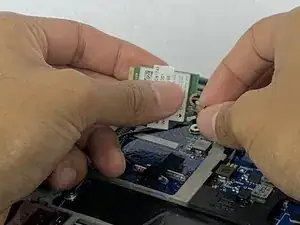

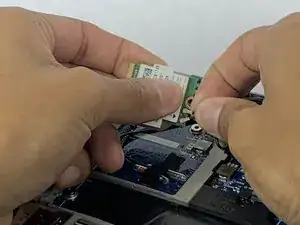

  6. woNBoyALhmoWKHD3
    woNBoyALhmoWKHD3
    D2aOCMruioXLaMDB
    H5NZZedLFnLjRrR3

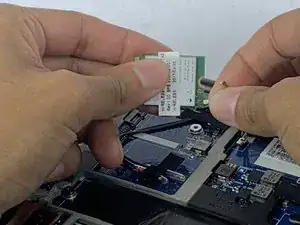

    • Disconnect the coaxial cables wires from the WiFi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
