How to replace the battery of a HP EliteBook 850 G5 laptop. The images and information in this guide were taken from this computer's service manual.
Ersatzteile
-
-
Turn off the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
-
Disconnect the power from the computer by unplugging the power cord from the computer.
-
Disconnect all external devices from the computer.
-
Turn the computer upside down on a flat surface.
-
-
-

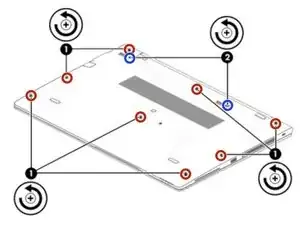

Loosen the eight captive screws that secure the bottom cover.
-
Loosen the two inset captive screws that secure the bottom cover.
-
-
-

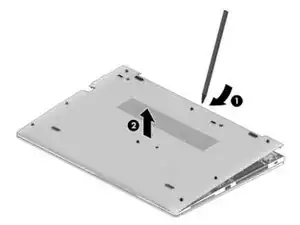

Starting under the middle of the display, pry and lift the bottom cover off the computer. Consider using a spudger.
-
-
-

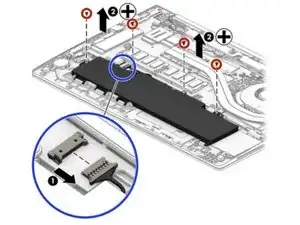

Disconnect the battery cable from the system board.
-

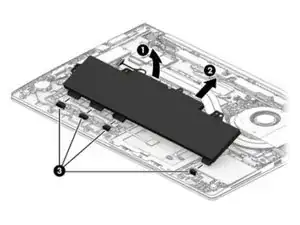

Remove the four Torx T8 2.0×4.0 screws.
-
To replace the battery & reassemble your device, follow these instructions in reverse order.
