HP EliteBook 8530w Hard Drive Replacement

Geschrieben von: Raymond Kwasneski

Kommentare: 4

HP EliteBook 8530w Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 Minuten

Einleitung

This is a guide that will show you how to replace the drive of this laptop.

Replacing the drive of a computer may be done for a number of reasons. You will want to replace the drive if it no longer functional, want more storage, or upgrade from a hard disk drive (HDD) to a faster solid state drive (SSD).

Werkzeuge

Phillips #00 Screwdriver

Schritt 1

Turn the laptop off then place it down so that the back is facing up.
Slide the battery release switch to the left and hold it there.

Schritt 2

Pull the battery away upward and away from the laptop while continuing to hold the release switch.
Once the battery is removed from the laptop, you may release the switch.
To properly dispose of your battery, look for the closest location that accepts electronic waste in your area and drop it off there.

The second bullet should be orange, not yellow

John Lamothe - 12/03/20

Also, how should they dispose of the batter?

John Lamothe - 12/03/20

Schritt 3

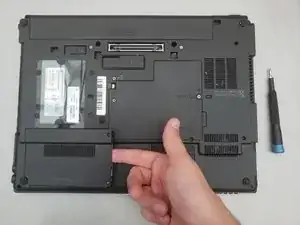

Remove the two screws from the hard drive cover using a Phillips #00 screwdriver.

Use multiple photos in this step.

John Lamothe - 12/03/20

Schritt 4

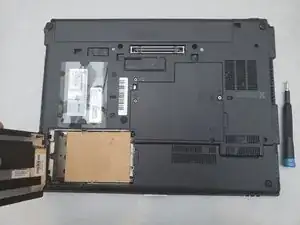

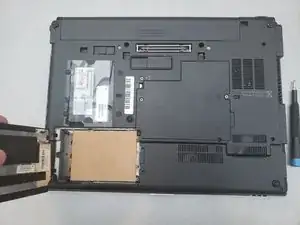

Use a finger or spudger to lift the edge of the hard drive cover that was screwed down.
Remove the cover.

Schritt 5

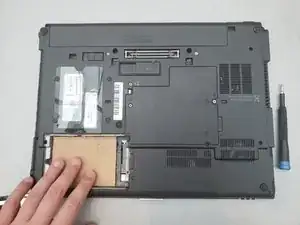

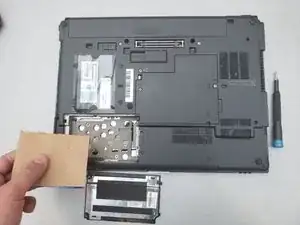

Slide the hard drive to the left to disconnect it from the connector on the right side.
Pull the hard drive up and out from the laptop.
These images show a piece of cardboard as a stand in for a missing hard drive.

It should read, “The drive is connected to a tab on the on the right side; grab the drive and slide it to the left so that it is no longer connected to the tab.”

John Lamothe - 12/03/20
