HP EliteBook 8530w Screen Replacement

Geschrieben von: Raymond Kwasneski
  • Kommentare: 3
HP EliteBook 8530w Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten

Einleitung

There are many ways screens can get damaged, and sometimes it is hard to identify a damaged screen if doesn’t work and it’s not cracked. If you do believe the screen is bad, don’t worry, replacing the screen is not as bad as you think. This guide will show you how to replace the screen in an HP EliteBook 8530w laptop.

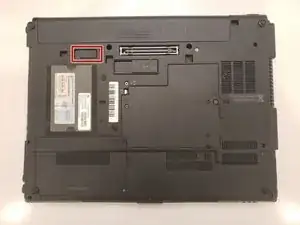

  1. rTSkZbji5Ebp6XAY
    rTSkZbji5Ebp6XAY

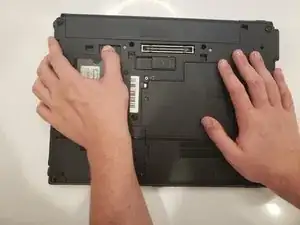

    J3LLUvEdbLLP3Ekn

    • Turn the laptop off then place it down so that the back is facing up.

    • Slide the battery release switch to the left and hold it there.

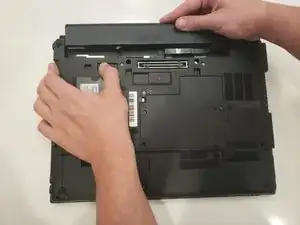

  2. urCXsuEAeDyksDYA
    urCXsuEAeDyksDYA
    jBqKqxw5oFKdkcYp

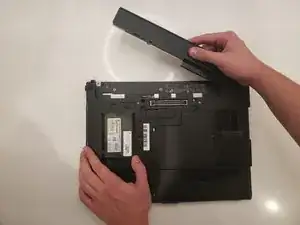

    • Pull the battery away upward and away from the laptop while continuing to hold the release switch.

    • Once the battery is removed from the laptop, you may release the switch.

    • To properly dispose of your battery, look for the closest location that accepts electronic waste in your area and drop it off there.

    The second bullet should be orange, not yellow

    John Lamothe -

    Also, how should they dispose of the batter?

    John Lamothe -

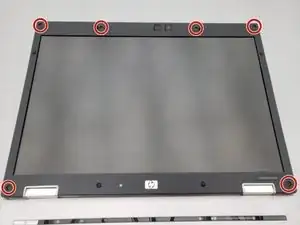

  3. MQepK3NldSGawesT

    • Turn the laptop off then place it down so that the top is facing up, then open the laptop.

    • Remove the six screws around the screen bezel using a Phillips #00 screwdriver.

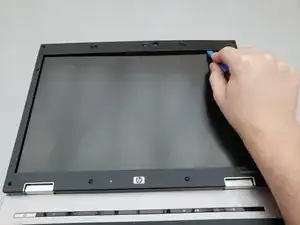

  4. 2YiOs3XBqGnmv4ck
    2YiOs3XBqGnmv4ck
    CNSQlHRpRgTBWuXT

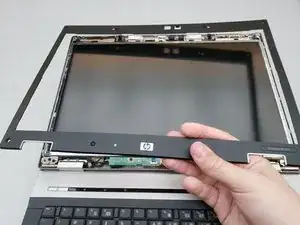

    53bbue6EptUkA2Ul

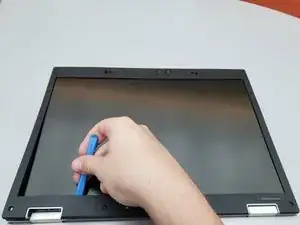

    • Using a plastic opening tool, gently pry the bezel from the screen on all four sides.

    • Remove the bezel.

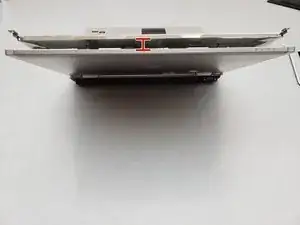

  5. dtdr6wsKylRwvv4T
    dtdr6wsKylRwvv4T

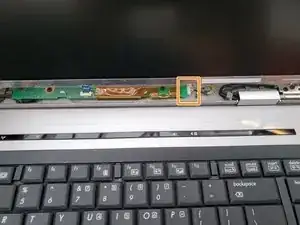

    BsAqQniDW1LC5KnI
    jXEeU5InBhjGgaWS

    • Lift the screen from the frame at the top of the laptop.

    • At the bottom of the screen, there will be a cable connected to the body of the laptop. Remove this cable.

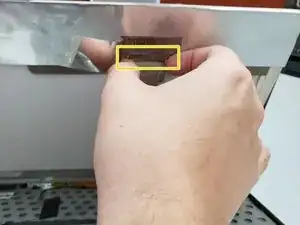

    • On the back of the screen, there will be a ribbon cable that connects to it. Remove this cable by pinching the two tabs on the ends of the connector and pull outwards.

    Third photo in this step should be shot from a different angle.

    John Lamothe -

  6. OrLKsx4NTmCjqKOV
    OrLKsx4NTmCjqKOV
    w6XDUaxyx1POqXKn
    G2PsNYpaJqDLeIoR

    • The screen is being held in place by eight screws on the left and right side. Remove these eight screws with a Phillips #00 screwdriver.

    • These screws are the only thing holding the screen in place. Make sure you are holding the screen when you are removing the last few screws.

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
