HP EliteBook 8560w Hard Drive Replacement

Geschrieben von: Alexandre Mota
  • Kommentare: 0
HP EliteBook 8560w Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

Hello, this guide will help you replace the Hard Drive in a HP EliteBook 8560w.

Keep in mind that your device should be turned off and disconnected from the power adapter.

Usually, a Hard Drive needs to be replaced when the computer won’t boot. However, check out our troubleshooting page to see if your issue falls into a different category.

Please follow instructions as they appear.

  1. VICZ2w2fPgRo1Mu2
    VICZ2w2fPgRo1Mu2
    mFNt3OilmYJICRQ4

    • Make sure your device is powered off and disconnected from the power adapter.

    • Slide the lock all the way to the left. The battery should pop up.

  2. P6uyy3YKMZMFTNbK

    • Pull the battery out.

  3. KVZUUI6sSpBjvIlB
    KVZUUI6sSpBjvIlB
    TAiHHaRCNBNoIafB

    • Slide the lock all the way to the right and remove the M2.5x8mm screw with a Philips #0 screwdriver.

    • Make sure your device is turned off and your battery is removed.

  4. YCGZCgBDXcQUOVpE

    • Slide the panel towards you and lift it up to open and access the back of the computer.

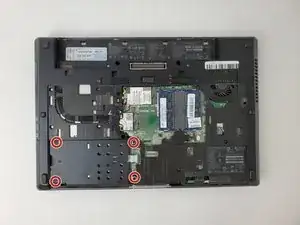

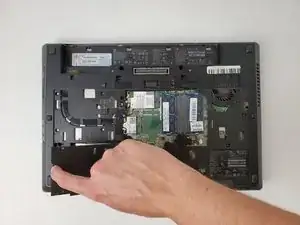

  5. fB66uddHco3ExeV5
    fB66uddHco3ExeV5
    FZpR4a5qIuXwfIHv

    • Make sure your device is powered off and its battery removed.

    • Remove the four M2.5x8mm screws with Phillips #0 screwdriver and lift up the panel to access your Hard Drive.

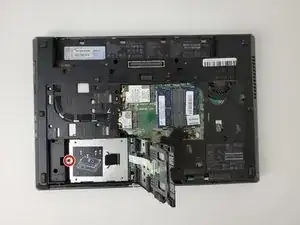

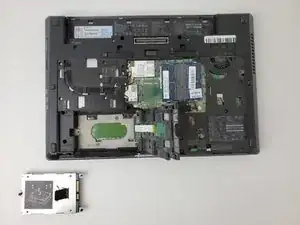

  6. SHqdY1yHWukSXcMN
    SHqdY1yHWukSXcMN
    KAbWKZdHLiY2Wq5P
    vQmQDGJOWCJSWxDH

    • Remove the M2.5x8mm screw with Phillips #0 screwdriver.

    • Slide the hard drive to the left and lift it to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
