HP EliteBook 8560w Memory Replacement

Geschrieben von: Alexandre Mota

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

Hello, this guide will help you replace the memory in a HP EliteBook 8560w.

Keep in mind that this model has two pairs of memory: one pair below the back panel and another below the keyboard. We’ll describe the steps for both.

Usually, a computer’s memory needs to be replaced when a message of “not enough memory” pops up in your screen. However, check out our troubleshooting page to see if your problem falls into a different category.

Please follow instructions as they appear.

Werkzeuge

Schritt 1

Make sure your device is powered off and disconnected from the power adapter.

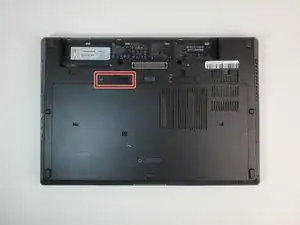

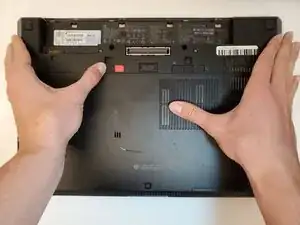

Slide the lock all the way to the left. The battery should pop up.

Schritt 2

Pull the battery out.

Schritt 3

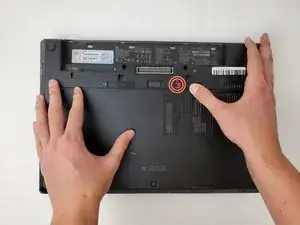

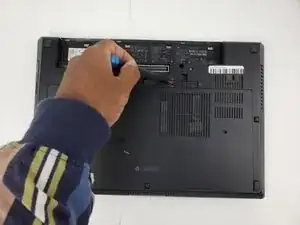

Slide the lock all the way to the right and remove the M2.5x8mm screw with a Philips #0 screwdriver.
Make sure your device is turned off and your battery is removed.

Schritt 4

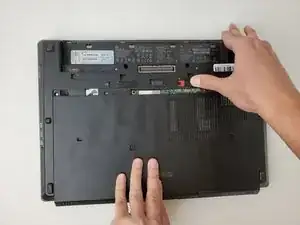

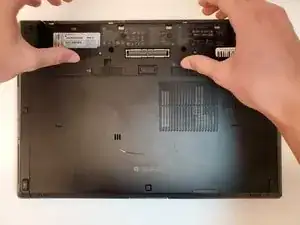

Slide the panel towards you and lift it up to open and access the back of the computer.

Schritt 5

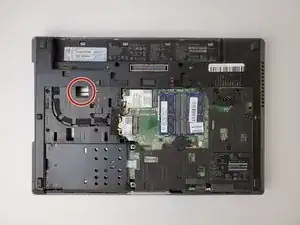

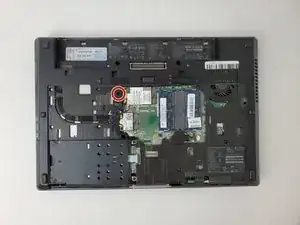

Unscrew one M2.5x8mm screw using a Phillips #0 screwdriver.
The screw does not have to come out completely.

Schritt 6

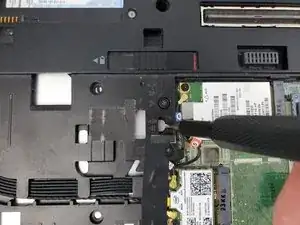

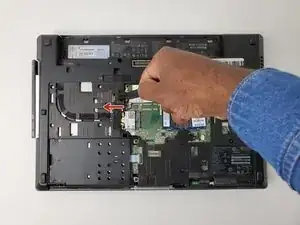

Push the metal tip to the left with a screwdriver.

Schritt 7

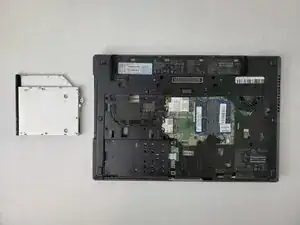

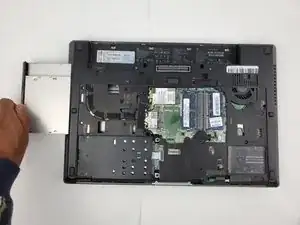

Pull out the CD/DVD ROM with your hand.

Schritt 8

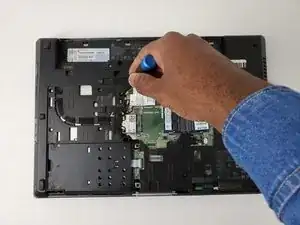

Unscrew three M2.5x8mm screws using Phillips #0 screwdriver.

Schritt 9

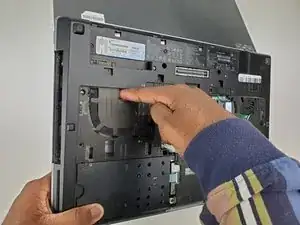

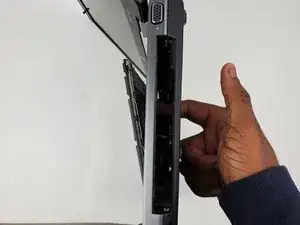

Put your finger through the hole to push out the keyboard from its place.
Keep in mind to push rather hard to fully remove the keyboard from the actual laptop.

The keyboard is not comming out

Samrat Gaur - 25/05/21

Schritt 10

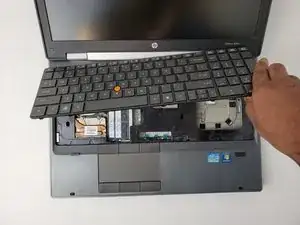

Carefully lift keyboard to reveal connection strips.

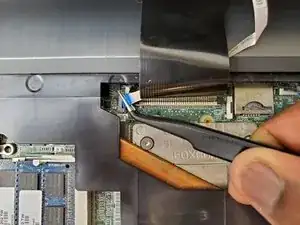

Unlock the latch holding the connection strips.

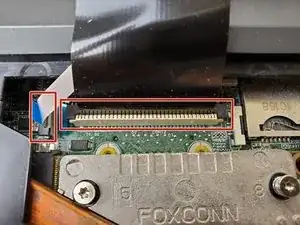

Pull out the connection strips from the motherboard.

Schritt 11

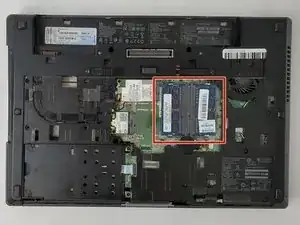

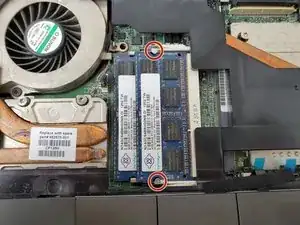

Your HP EliteBook 8560w has two pairs of RAM: one below the keyboard and the other below the back panel. This guide begins removing the pair below the keyboard, then proceeds to the one below the back panel.

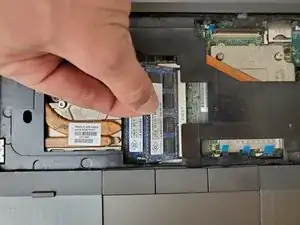

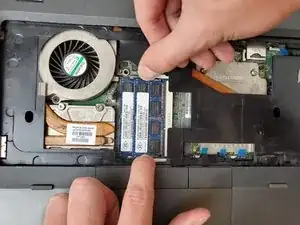

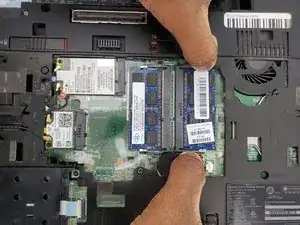

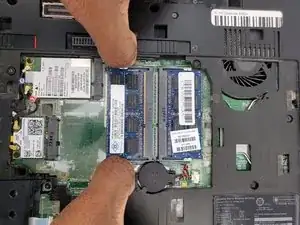

Pull both metal parts away from memory pair. Lift memory pair and it will come out.
