Einleitung

Is your laptop struggling to hold a charge? If so, here is the guide to fix the problem by replacing that faulty battery. In order to replace it, the back cover of the laptop must be removed to expose both the Phillips head screws which secure the battery and the battery itself.

Before replacing the component, please remember to power down your computer and unplug the power cable to avoid any power surges or shorts. Failing to power down and disconnect the power cable may result in further harm to the laptop or even yourself, so precautions must be taken.

  1. itsycJoLWUdRS6Om

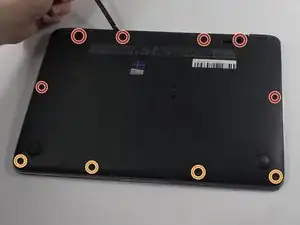

    • Use a TR8 Torx screwdriver to remove:

    • Six 5.3 mm screws

    • Four 3.3 mm screws

  2. uuqUrDG2Rl6R5jHE

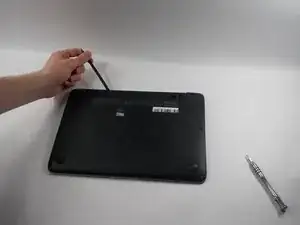

    • Use a nylon spudger to gently pry the lower case up and off.

  3. rFoVyNnBPGmWOPNF
    rFoVyNnBPGmWOPNF
    YklrkSSVUdJeVPa4

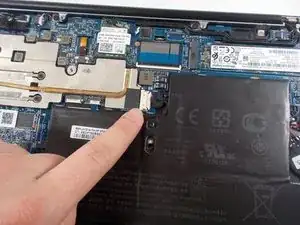

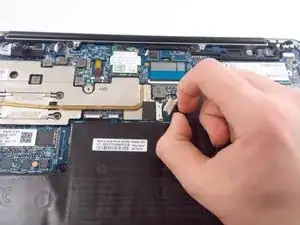

    • Gently pull and free the battery's bundled cable connector that leads from the battery to the motherboard.

  4. m2TfbVDD5BSkZydG

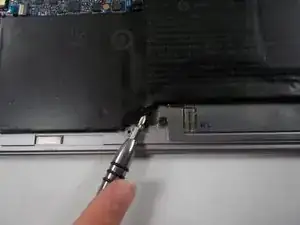

    • Use a Phillips #1 screwdriver to unscrew and remove the six 4 mm screws that secure the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
