HP EliteBook x360 1030 G3 Solid State Drive Replacement

Geschrieben von: Pablo Arriola
  • Kommentare: 1
HP EliteBook x360 1030 G3 Solid State Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

4 Minuten

Einleitung

This guide explains how to remove the hard drive from the laptop.

  1. 6jic6bxJFvToOpWM

    • Be sure to power off and unplug your device before you begin your repair.

    • Close the laptop and flip it so that the screen is on the surface of the table and the back plate is facing you.

    • Remove the 3.3 mm screw near the top of the hinge using a T5 Torx screwdriver.

    • Remove the remaining four 7.3 mm screws using the same screwdriver.

  2. 4cZiMcfhh5M6foMq

    • Separate the bottom cover from the laptop, starting from the upper corner and working your way around the edge.

    • The plastic fastening may make cracking sounds when separating, but this is normal.

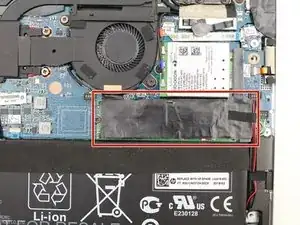

  3. iePZmp44AJhYhOIx
    iePZmp44AJhYhOIx

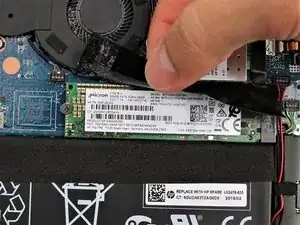

    EbAEIZEa4QW2CNXO

    • Lift the black tape covering the solid state drive.

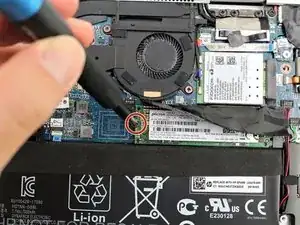

  4. yQh3XKRpvJWMCaoW

    • Remove the 2.4 mm screw using a Phillips #1 screwdriver.

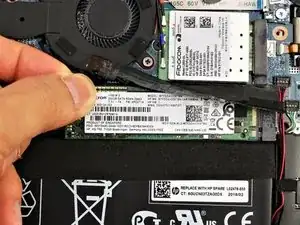

  5. Gl4fKfUHiu3lh1AG

    • Slide the solid state drive to the left and out of its port.

    • Be careful when removing the solid state drive as bending any of the pins may render it unusable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
