HP EliteBook x360 1030 G3 Wireless Card Replacement

Geschrieben von: Shea Charkowsky
  • Kommentare: 0
HP EliteBook x360 1030 G3 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

6 Minuten

Einleitung

This guide shows how to remove the wireless card from your laptop.

  1. 6jic6bxJFvToOpWM

    • Be sure to power off and unplug your device before you begin your repair.

    • Close the laptop and flip it so that the screen is on the surface of the table and the back plate is facing you.

    • Remove the 3.3 mm screw near the top of the hinge using a T5 Torx screwdriver.

    • Remove the remaining four 7.3 mm screws using the same screwdriver.

  2. 4cZiMcfhh5M6foMq

    • Separate the bottom cover from the laptop, starting from the upper corner and working your way around the edge.

    • The plastic fastening may make cracking sounds when separating, but this is normal.

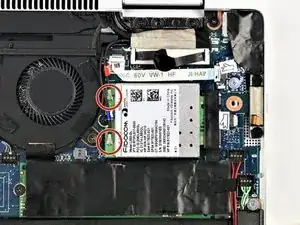

  3. GbI4Z4TMLqHenI6b
    GbI4Z4TMLqHenI6b

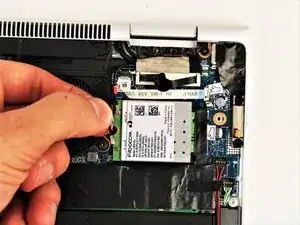

    lIR6RN55xw5JHgHZ

    • Detach the small wires connected to the card by lifting the ends straight upward. The wires are held in place by friction and should pop right off.

    • These wires should be handled carefully since they're the Wi-Fi and Bluetooth antennas.

    • Take note of which wire goes where, as mixing these cables will cause both Wi-Fi and Bluetooth to stop working.

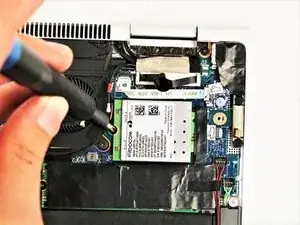

  4. 4suJHuTR5jeMUYV3

    • Remove the 2.4 mm screw holding the card down using a Phillips #00 screwdriver.

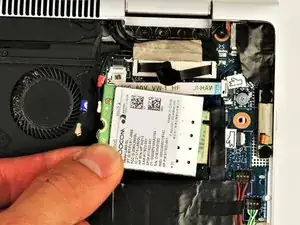

  5. jBcsZxn2KvP5h4Bd
    jBcsZxn2KvP5h4Bd

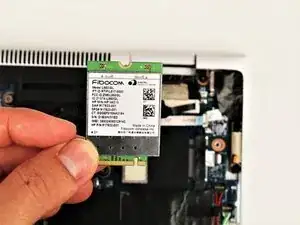

    hBLUZC1ssGmK55Dp

    • Carefully pull out the card by sliding it to the left.

Abschluss

To reassemble your device, follow these instructions in reverse order.
