Einleitung

This guide is meant to show you how to replace a broken, malfunctioning, corrupted or otherwise inadequate drive. This guide requires a small amount of technical knowledge and is considered a moderately easy guide. There are no hazards associated with this guide, but it is vital to keep track of all the small parts that are removed during the process.

  1. rHrROK2NoiVXKUyT
    rHrROK2NoiVXKUyT
    LCaDcDLkOTbi5Ngs
    SFCCcTqDsbMnAWs6

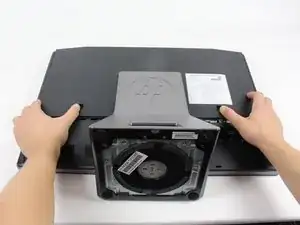

    • Place the computer screen down on a flat surface.

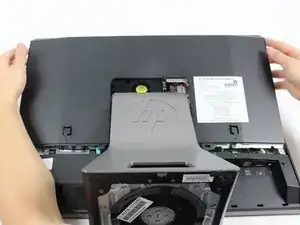

    • Push the two locking latches to the unlocked position.

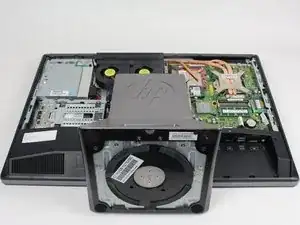

    • Push the cover toward the top of the computer and lift up.

  2. KHlgAigVBNDS26So
    KHlgAigVBNDS26So
    TgyDdnPdXfLlA6DH
    VxNbiUaPVYZXJBJx

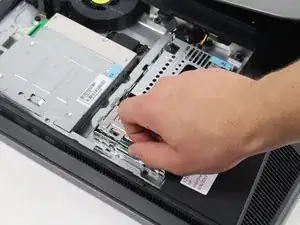

    • Grasp the handle on the hard drive cage to the left of the stand. It is marked with green.

    • Pull the handle up, allowing the entire cage to slide toward the outward edge of the computer.

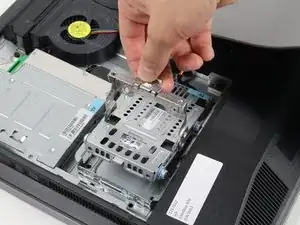

    • Pull the entire cage up and out of the device.

  3. IZuwqCFLWPuyZjUO
    IZuwqCFLWPuyZjUO
    PIH4PFecCLKpegF4

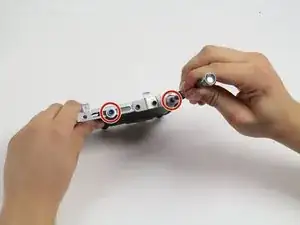

    • Once the cage is out of the device, use a Torx T15 driver to unscrew the four 10mm screws keeping the drive in place. There are two screws on each side.

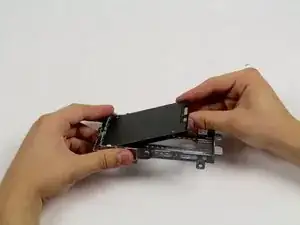

    • Once all the screws are removed, lift the drive out of the cage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
