HP EliteOne 800 G1 RAM Replacement

Geschrieben von: Kyle Koivuniemi
  • Kommentare: 1
HP EliteOne 800 G1 RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide will show you how to replace a RAM unit in the HP EliteOne 800 G1. There are many small parts removed during this guide, so it is important to keep track of all the components that are removed to assemble the device .

  1. rEgmpEJ4U1IV1qUO
    rEgmpEJ4U1IV1qUO
    rnHUOsyhpX6HTLBm
    RbpiZI6TBafEHZlH

    • Place computer with the screen down on a flat surface.

    • Push the two locking latches to the unlocked position.

    • Push the cover toward the top of the computer and lift up.

    how to know the model of the screen for this device hp eliteone 800 g1 all in one

    because my screen is damage, I want to replace it.

    Naji -

  2. Lfv52OvVRxY6lvQ1
    Lfv52OvVRxY6lvQ1
    aJaVOnkyBOux2tD2

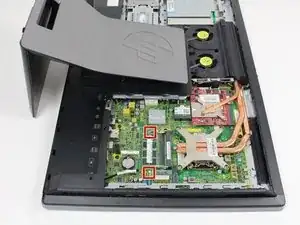

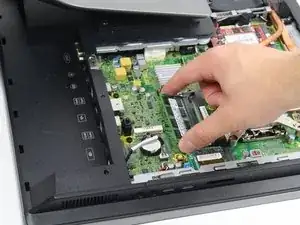

    • Notice the 2 latches on either side of the RAM stick.

    • Press latches outward and RAM stick will flip up to about a 30 degree angle.

  3. cZSb2Z1tBJPoGP2t

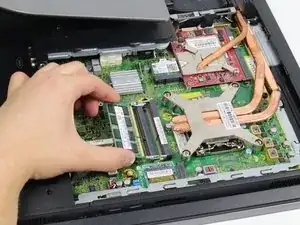

    • Gently pull the RAM stick up at an angle. You may need to wiggle the stick up and down or side to side in order to get it loose.

  4. 3ulDfsAodHHWvRDN
    3ulDfsAodHHWvRDN
    LNULlOqELZ4aYyRl

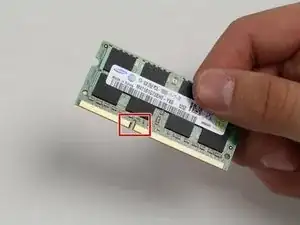

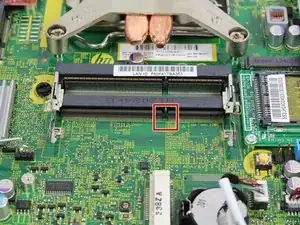

    • When replacing the RAM stick, take note of where the small notch on the stick is and where there is a similar notch on the slot. Make sure you position the new stick so that the notches line up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
