Einleitung

Use this guide to replace the home button in your HP ElitePad 900.

  1. LNiXxxUjV5oyhCaX
    • Unscrew the two 2.8mm Phillips #000 screws near the power connector.

  2. AMQAqANB6KaSZYKi
    AMQAqANB6KaSZYKi
    KncICxhetD2b21SC
    • Use a suction cup to pull the display assembly up.

    Several of the clips that hold the screen in appear to be spring loaded and magnetic. I theorize that the official replacement tool contains magnets that pushes those clips back toward the center of the screen, releasing them. I’m wondering if the same thing could be accomplished with the proper end of a bar magnet. I do know that if you lay the removed screen down on the 6 little screws that hold the battery in, you will have a devil of a time finding them stuck to one of the clips. At least the floor of the shop got a good sweeping. ;^)

    C. Jon Hinkle -

  3. UlxWWTqQl3DZHsLP
    UlxWWTqQl3DZHsLP
    4y6PFQEZHXmXRrkA
    • Use the tip of a spudger to disconnect the two display ZIF connectors.

  4. dLSNICySMTHGp2hl
    • Remove the two 2.4mm Phillips #000 screws.

  5. KfRtYMljmUyVbEe6
    • Lift metal bracket along with blue connector.

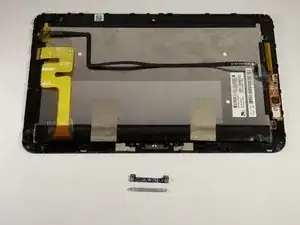

  6. IGVou2GAVyWKhMjj
    • Replace connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
