Use this guide to replace the speakers in your HP ElitePad 900.

  1. LNiXxxUjV5oyhCaX
    • Unscrew the two 2.8mm Phillips #000 screws near the power connector.

  2. AMQAqANB6KaSZYKi
    AMQAqANB6KaSZYKi
    KncICxhetD2b21SC
    • Use a suction cup to pull the display assembly up.

    Several of the clips that hold the screen in appear to be spring loaded and magnetic. I theorize that the official replacement tool contains magnets that pushes those clips back toward the center of the screen, releasing them. I’m wondering if the same thing could be accomplished with the proper end of a bar magnet. I do know that if you lay the removed screen down on the 6 little screws that hold the battery in, you will have a devil of a time finding them stuck to one of the clips. At least the floor of the shop got a good sweeping. ;^)

    C. Jon Hinkle -

  3. UlxWWTqQl3DZHsLP
    UlxWWTqQl3DZHsLP
    4y6PFQEZHXmXRrkA
    • Use the tip of a spudger to disconnect the two display ZIF connectors.

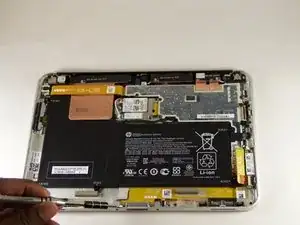

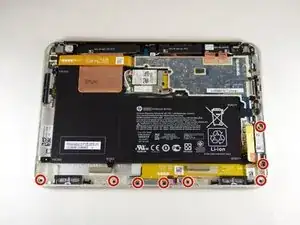

  4. CrMoTmURb2wBlCjK
    CrMoTmURb2wBlCjK
    EMXIgkWQ4I4EiaAg
    TgLGykCIUDlH6YEV
    • Remove the eight 2.4mm Phillips #000 screws.

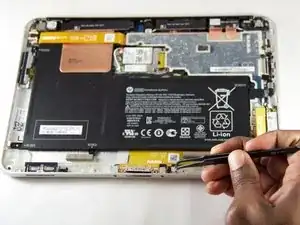

  5. i4VfIwJvQZfSkCuk
    • Gently use tweezers to disconnect the indicator wire.

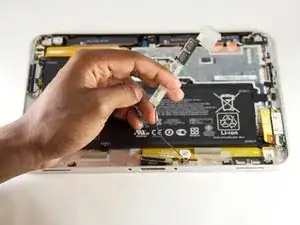

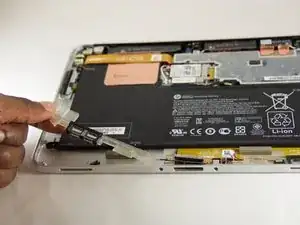

  6. HA5tQHsDsMNHeDDk
    HA5tQHsDsMNHeDDk
    EZmWFyMS2LUfjIPr
    YA5lTvp1Jju61oLx
    • Lift the charging port over the left speaker.

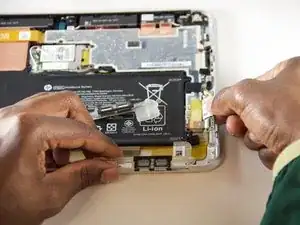

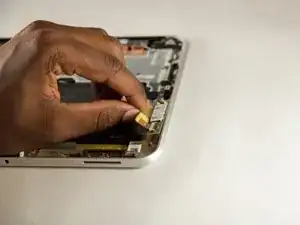

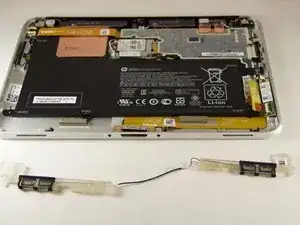

  7. ELViFnWhGxjLDEFJ
    ELViFnWhGxjLDEFJ
    etpVkTeTGdlVGl2p
    ZrGheaPaeLyw3jSt
    • Slightly lift the green PCB to slide out the right speaker.

    • Replace the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
