Einleitung
The computers hard drive is where all of its data is stored and kept when the computer is turned off. Upgrading it to a larger or faster HDD or SSD is very important in keeping your computer running properly. This simple guide shows how to easily access the HDD bay within the laptop.
Werkzeuge
-
-
Place the laptop face down in front of you.
-
Use a Phillips #0 screwdriver to remove the three 3 mm screws from the back of the case.
-
Remove the back panel.
-
-
-

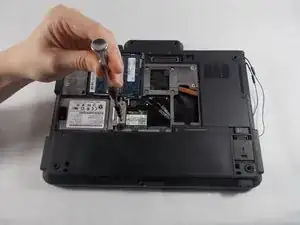

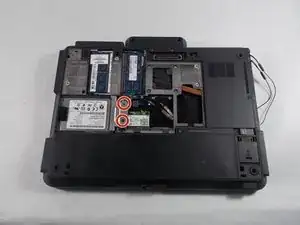

Use a Phillips #0 screwdriver to remove the two 3 mm screws from the small metal HDD bracket.
-

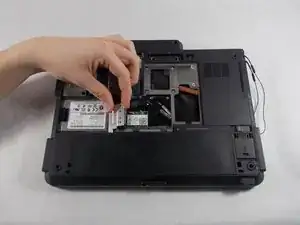

Lift up on the small bracket and pull it off.
-
-
-

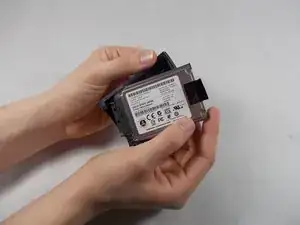

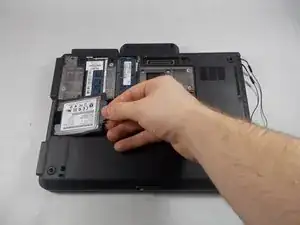

Pull out the hard drive and the small rubber sleigh that holds it.
-

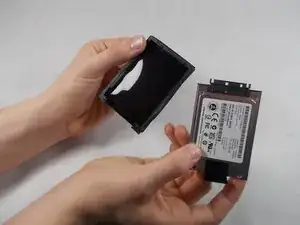

Pull the rubber sleigh off of the hard drive.
-
To reassemble your device, follow these instructions in reverse order.
