HP Elitebook 840 G7 M.2 NVMe SSD Replacement

Geschrieben von: Pedro Ramos Espinoza
  • Kommentare: 1
HP Elitebook 840 G7 M.2 NVMe SSD Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Use this guide when replacing the storage drive on a HP Elitebook 840 G7.

Storage drive is used to store data, files, and software programs that run on the computer.

Consider upgrading your storage drive if the current one is full or broken. A failing storage drive signs include: Failure to boot, slow performance, and file corruption.

  1. pBOFPVjHbLXOcROx

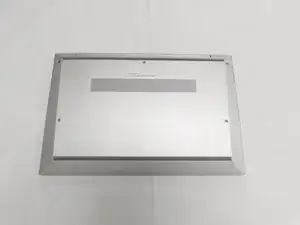

    • Turn the laptop on its back

  2. HfUu1Ac5uH5CMKZD

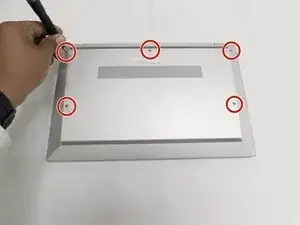

    • Use your Phillips # 1 screwdriver and remove the five 1.2mm screws from the back cover of the laptop

  3. nJXSJd6AkVseiDZT
    nJXSJd6AkVseiDZT
    UfsTYGEdiJOPwWZX
    3SLTroxhbnPHsdco

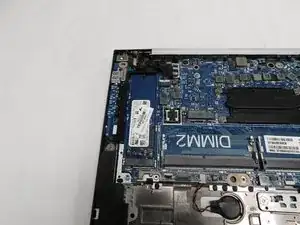

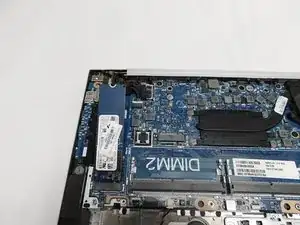

    • Removing the back cover to expose the hardware

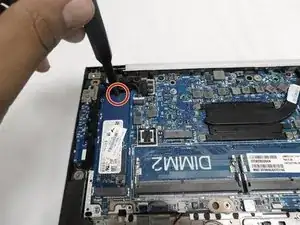

    • Locate the M.2 storage stick and remove the 1.2 mm screw with a Phillips # 1 screwdriver

  4. 6DJexOXkkHWDLavN
    6DJexOXkkHWDLavN
    oDPbO1ELBSWcVAKj

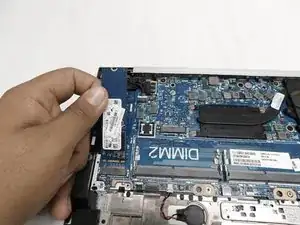

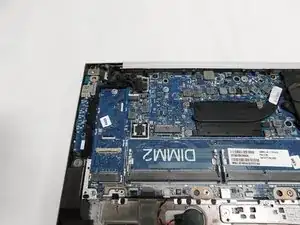

    • Grab with M.2 storage with your hand and pull away to remove

Abschluss

To reassemble your device, follow these instructions in reverse order.
