HP Elitebook Folio 9470m RAM Replacement

Geschrieben von: Kenneth Bowers
  • Kommentare: 1
HP Elitebook Folio 9470m RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

RAM, or random access memory, is short-term storage for your HP Elitebook Folio 9470m. RAM is used by your processor for immediate use as-needed, unlike long-term files written to a hard disk drive. If your computer has slowed considerably or you’re looking for a boost, replacing/upgrading the RAM is a fairly simple and inexpensive first step. The HP Elitebook Folio 9470m laptop comes standard with 16GB of RAM and can be upgraded to a maximum of 16GB with its two (DDR3) slots.

  1. PTHMsZUyGUOteh4L

    • Remove battery using this guide here.

  2. 3GoKgpcwWZaJAZuy
    3GoKgpcwWZaJAZuy
    SpPNiHG3WaS6OlNO
    BU5fOuVFLUOD1WrE

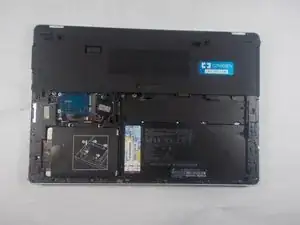

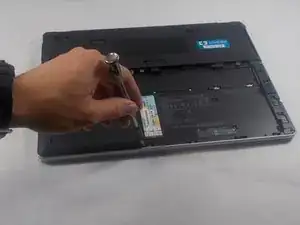

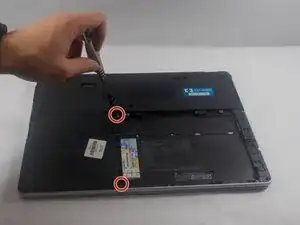

    • Unscrew 2 Phillips head screws, lift slightly up and out to remove hard drive cover.

  3. onrVStVRdDpMmnyK
    onrVStVRdDpMmnyK
    jIRvslPXUXJEFuWq
    rplIAMIioXq1eLSJ

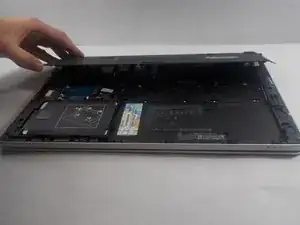

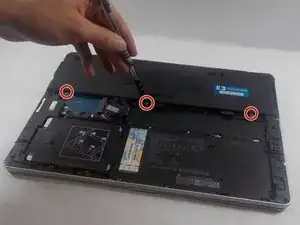

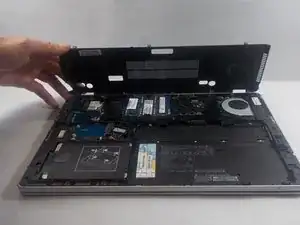

    • Remove the three Phillips screws from the back plate. Pull slightly up and out to remove the plate.

    • These screws are also marked with a small RAM icon.

  4. TyeJUClZJEafJqPr
    TyeJUClZJEafJqPr
    E5OagA2KrajZpPKu
    dETsLAfPCVYOTtYD

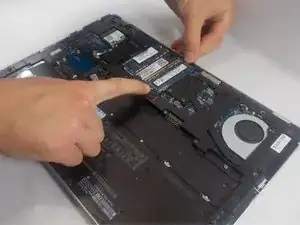

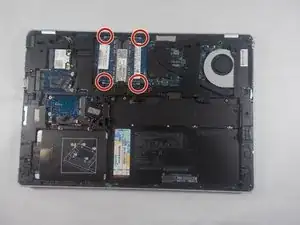

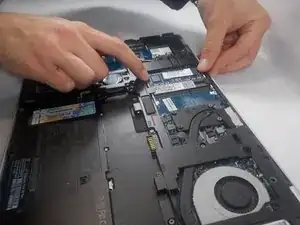

    • Gently push out the small tabs on either side.

    • The RAM should pop up and easily be taken out from there.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kenneth Bowers

Mitglied seit: 08/04/16

1345 Reputation

Ein Kommentar

There are 2 black Philips screws more you have to loose, before you can open the back plate. One on the left side (near wifi card), and on right side.

Mikael Salo -
