If your HP envy 15 laptop (model u001dx) has a broken or displaced chassis, use this guide to replace the chassis (also known as frame).
The chassis is a metal case that houses the circuit boards and wiring.
Before beginning, make sure to power off your laptop completely and disconnect any external power source. Finally, as you go through the steps in this guide, do so carefully, because electronic components are semi-fragile.
Werkzeuge
-
-
Flip the device over so the bottom is is facing up.
-
Peel up the two rubber feet closest to the hinge using the metal spudger to reveal two 6.6 mm Phillips #0 screws.
-
-
-
Peel up the small plastic coverings in the middle of the device with the spudger to reveal two more 6.6 mm Phillips #0 screws.
-
-
-
Flip the device over and open it to reveal the keyboard.
-
Use the metal spudger to pry the chassis apart and reveal the inside of the device.
-
-
-

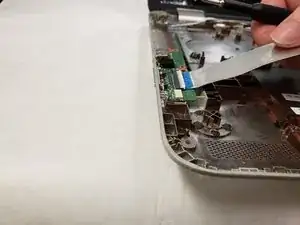

Disconnect the T/P cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the keyboard cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the battery cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the AUX/USB cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.
-
-
-
Disconnect the cable by gently pulling it out. The spudger may be used to help loosen it.
-
-
-
Remove the three 4.0 mm Phillips #0 screws with the Phillips #0 screwdriver on the fan.
-
Disconnect the cable by gently pulling it out.
-
Remove the fan by pulling it out of the chassis.
-
-
-

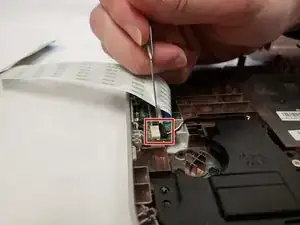

Disconnect the cable by gently pulling it out. The spudger may be used to help loosen it.
-
-
-

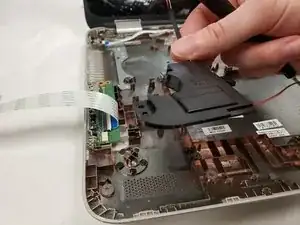

Remove each of the three 4.0 mm screws around the fan with the Philips #0 screwdriver.
-
The fan will now be loose, and easy to lift out.
-
-
-
Disconnect the wifi card from the motherboard and remove the motherboard from the rest of the device.
-
-
-

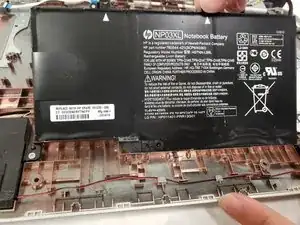

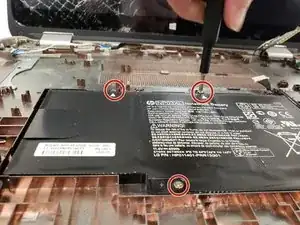

Remove the three 4mm Phillips #0 screws that attach the battery to the chassis.
-

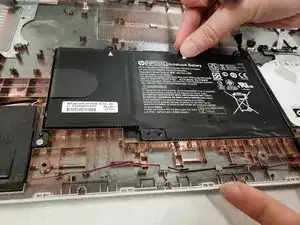

Once all three 4mm Phillips #0 screws are out, lift the battery out of the chassis.
-
-
-

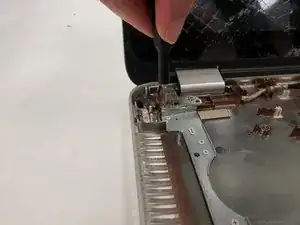

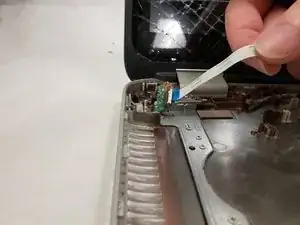

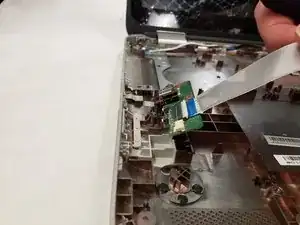

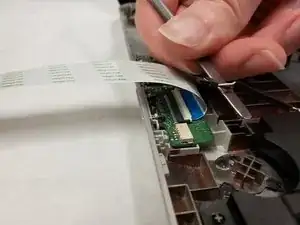

Carefully, use the spudger, to loosen the I/O port board connector.
-
Once the connector is loose, simply pull it away.
-
-
-

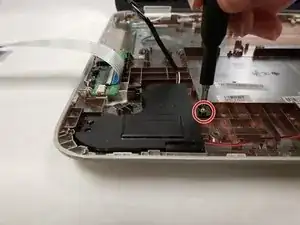

Remove the 4mm Phillips #0 screw that attaches the left speaker to the chassis.
-
Lift the left side speaker out of the chassis.
-
Remove the 4mm Phillips #0 screw that attaches the right speaker to the chassis.
-
-
-

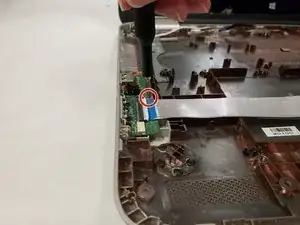

Remove the 4mm Phillips #0 screw attaching the volume circuitry board to the chassis.
-
Once screw has been removed, then simply pull the circuitry board out.
-
-
-
Remove the 4 mm Phillips #0 screws attaching the power button circuitry board to the chassis.
-
Once all the screws are removed, then simply pull the circuitry board out.
-
-
-

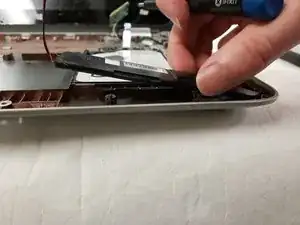

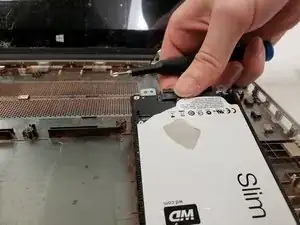

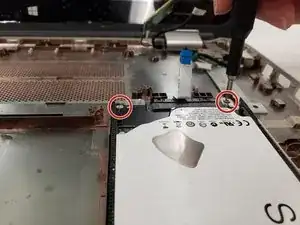

Remove the two 4mm Phillips #0 screws that attach the storage device to the chassis.
-
Then pull up on the storage device to get it pop it out of the chassis.
-
-
-

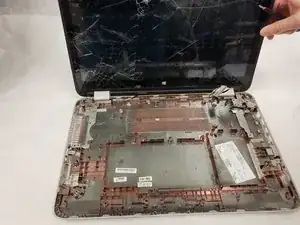

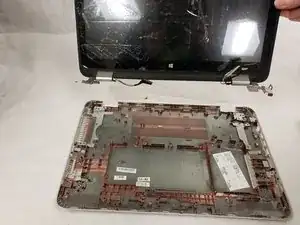

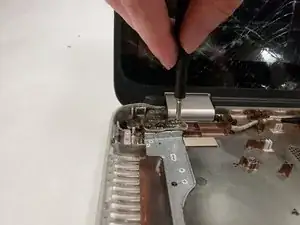

Remove the 6.6mm Phillips #0 screws that attach the screen to the right side of the chassis.
-
-
-

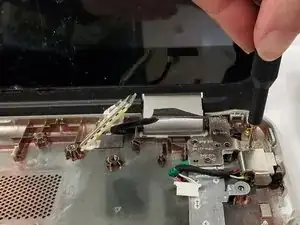

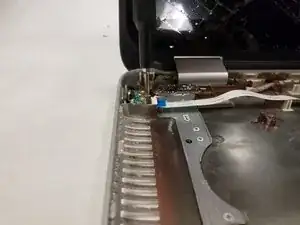

Remove the two 6.6mm Phillips #0 screws that attach the hinge to the chassis on the left side.
-
To reassemble your device, follow these instructions in reverse order.
