Follow this guide if you wish to replace or upgrade the RAM of your HP Envy 15-u001dx.

RAM (Random Access Memory) is where your computer stores the information that it is currently using. This allows it to access it much quicker than if it had to retrieve that information from the drives every time. There are a variety of reasons that you may want to remove/replace the RAM on your HP Envy 15-u001dx. First, the RAM itself could be going bad. There are a couple of signs that your RAM is going bad:

  • if you lose recently created files, or they become corrupted
  • if your computer reboots itself, or goes to the BSOD (Blue Screen of Death)
  • if your computer runs progressively slower the longer it is on

You may also want to upgrade your RAM to improve the performance and longevity of the device.

Once the motherboard is removed, replacing the RAM is a fairly simple process, and requires no tools. Still, it is important to be careful when working with electronic components because they are semi-fragile.

  1. RckroKHBf6oFZNpR
    RckroKHBf6oFZNpR
    UySLtSicuCCVGMKN
    g1hMnhFV6NKHCFSP

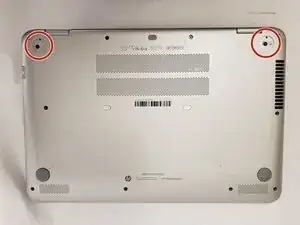

    • Flip the device over so the bottom is is facing up.

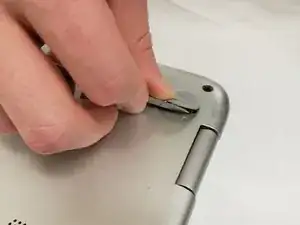

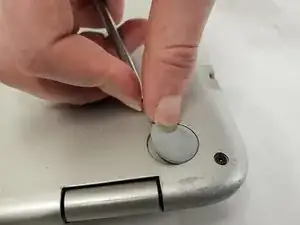

    • Peel up the two rubber feet closest to the hinge using the metal spudger to reveal two 6.6 mm Phillips #0 screws.

  2. 2RnxeHZu52Utoqsg
    2RnxeHZu52Utoqsg
    r4AyGZc5KFU5iwjZ

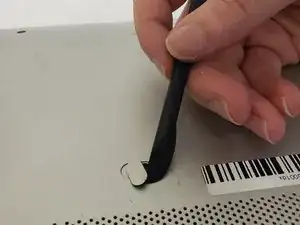

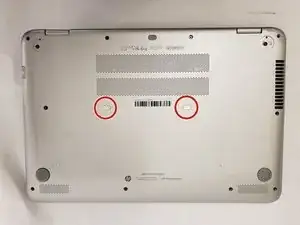

    • Peel up the small plastic coverings in the middle of the device with the spudger to reveal two more 6.6 mm Phillips #0 screws.

  3. TVRcU3Ny6RrIKeRC
    TVRcU3Ny6RrIKeRC
    2kEshqP2pjNdSpYd

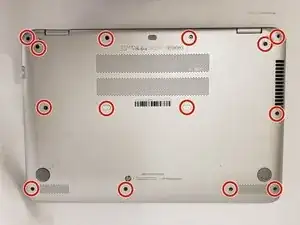

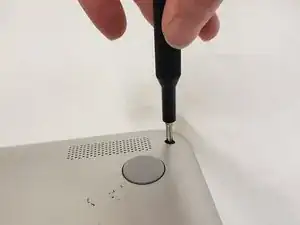

    • Remove each of the fourteen 6.6 mm Phillips #0 screws with the Philips #0 screwdriver.

  4. 4NdORI2QPU51dkGO

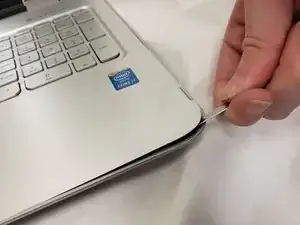

    • Flip the device over and open it to reveal the keyboard.

    • Use the metal spudger to pry the chassis apart and reveal the inside of the device.

  5. 5aFDqA5sfOCZjpSp
    5aFDqA5sfOCZjpSp
    xdUp6ZPHrid3Pu54
    gR51y2inBnXRqegF

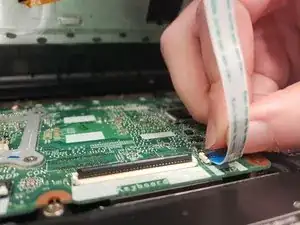

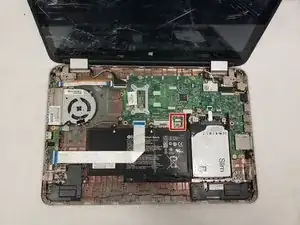

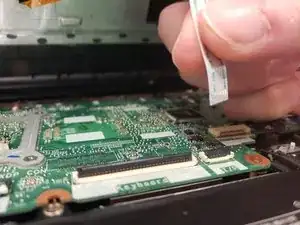

    • Disconnect the T/P cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  6. MvdQ5DTBaFuP6pBQ
    MvdQ5DTBaFuP6pBQ
    yw3YXNbyRL1uMZGv
    DFFwqAqc24j33VKa

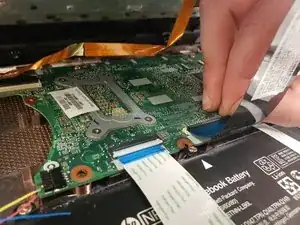

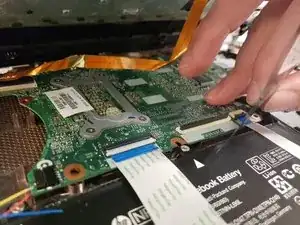

    • Disconnect the keyboard cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  7. XLbgXWoBpVX3ioeN
    XLbgXWoBpVX3ioeN
    uvWkaq2bBCjk1Qo1
    JAXsu3qjmGZytshV

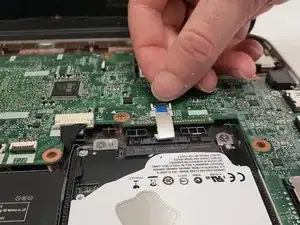

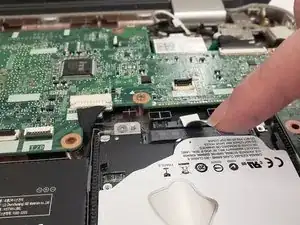

    • Disconnect the battery cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  8. enOIgaInLVC1Tyqs
    enOIgaInLVC1Tyqs
    bGIkjZxyRgnfwrTY
    oeOFcAVxJce1FLta

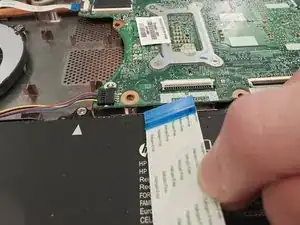

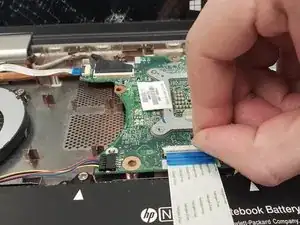

    • Disconnect the AUX/USB cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  9. vdbN5HuTkmSKFDCk
    vdbN5HuTkmSKFDCk
    ipuXSpGEdFhrPX4G
    qBbuDyRuTEu2oGHP

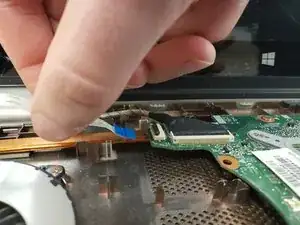

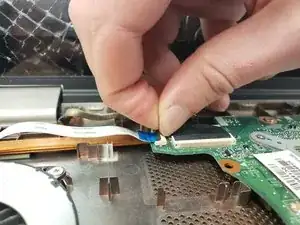

    • Disconnect the cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  10. tkr16S5REuQoBAVv
    tkr16S5REuQoBAVv
    R2IV3OZvaNViLaRK
    yuvU3vEYrMlC1PTj

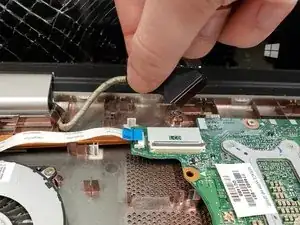

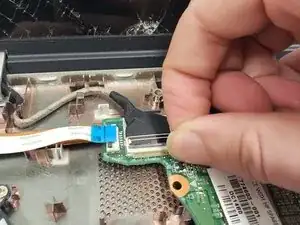

    • Disconnect the cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  11. XK6c1LoxSVQRb11v
    XK6c1LoxSVQRb11v
    HKjTsoAsNdZZZXnh
    vs5EbguZmuFYZEDA

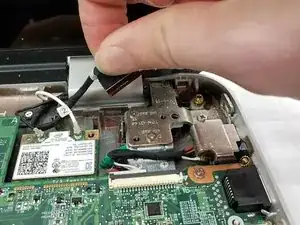

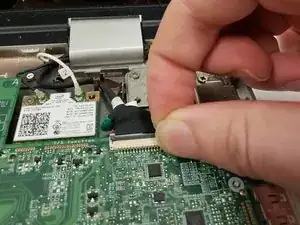

    • Disconnect the cable by flipping up the black plastic piece on the connector and pulling the cable out of the connector.

  12. lEeDw2B62ogiu3mm
    lEeDw2B62ogiu3mm
    fZQRiOuWFVRlUHd6
    fhBnWXD3LjenyrHQ

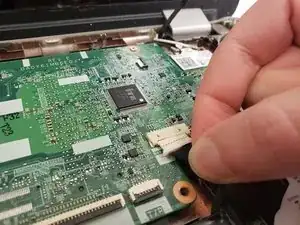

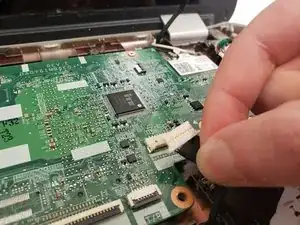

    • Disconnect the cable by gently pulling it out. The spudger may be used to help loosen it.

  13. wRaKPyRCPYQQmf3C
    wRaKPyRCPYQQmf3C
    2Aw5nugTRAHHcqKi
    JnFpQ2FVQhphOjoj

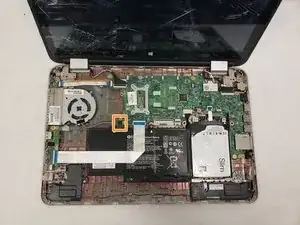

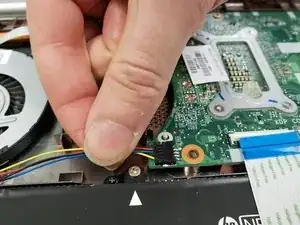

    • Remove the three 4.0 mm Phillips #0 screws with the Phillips #0 screwdriver on the fan.

    • Disconnect the cable by gently pulling it out.

    • Remove the fan by pulling it out of the chassis.

    • The connector tends to get stuck and forceful pulling will break it. Use the spudger to loosen the connector on each side.

  14. atu1MPqlLB5WIb4W
    atu1MPqlLB5WIb4W
    TXI4AAnUWaJM1Acv
    gNus41gVgQ6pRTdP

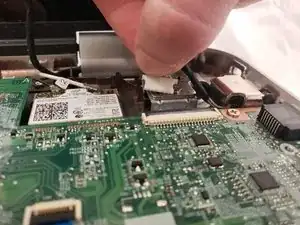

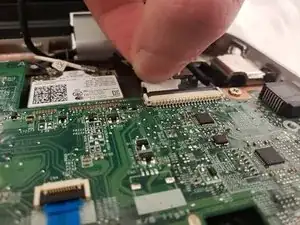

    • Disconnect the cable by gently pulling it out. The spudger may be used to help loosen it.

    • This connector may be hard to see because it is connected on the underside of the motherboard.

  15. TmegANKBgXAyb5lG

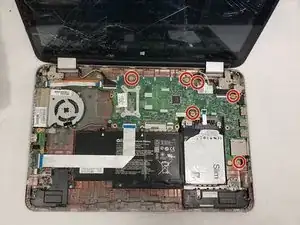

    • Remove each of the six 4.0 mm screws with the Philips #0 screwdriver.

  16. fAyAtHVTWFgtVfY4
    • Remove each of the three 4.0 mm screws around the fan with the Philips #0 screwdriver.

    • The fan will now be loose, and easy to lift out.

  17. bYmmYnFRFwJOarii
    bYmmYnFRFwJOarii
    iFJoUxFY2KkjUc4x

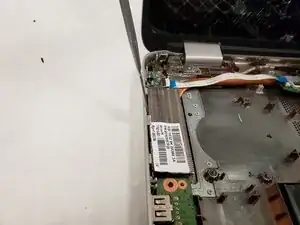

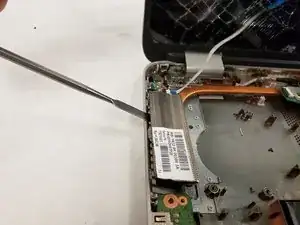

    • Gently pry the heat sink loose to release the motherboard.

  18. gdBkDdcUwMPUOpUw
    gdBkDdcUwMPUOpUw
    PEvsJELgmM3cA41r

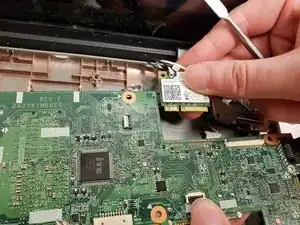

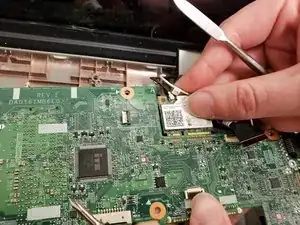

    • Disconnect the wifi card from the motherboard and remove the motherboard from the rest of the device.

  19. ABVZyCqafhKWIwVQ
    • The disconnected motherboard should look like the indicated photo.

  20. ecaj1eMAwZBNZdNP
    • Flip the motherboard over after removing it from the chassis. This will allow you to see th RAM itself (the blue rectangles in this picture).

  21. xhjyoOMLc4u5fnKO
    xhjyoOMLc4u5fnKO
    264goUPSvwVBCltt
    RKPFN1u2JJWkw2VU

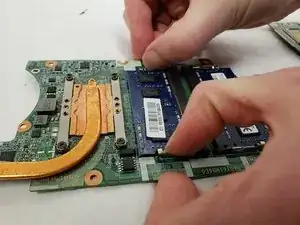

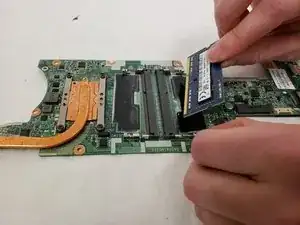

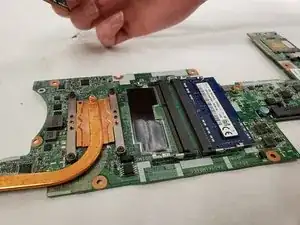

    • Press the metal locks on each side to release the RAM card.

    • The RAM should pop out a little, and can then be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
