HP Envy 15-u001dx Screen Replacement

Geschrieben von: Joshua Madden
  • Kommentare: 0
HP Envy 15-u001dx Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The 15.6" screen shows you what the computer is actually doing. Computers still work without a screen, you just can't see what they are doing.

  1. hAjKAwMpOJYO3L6e

    • Remove the two screw covers located in the bottom corners of the screen and the 2.5 mm Phillips #0 screws underneath them.

    • If these screws are not removed and you separate the bottom portion of the screen, you will not be able to refasten the screen to the back because the screw tab will break.

  2. XseIOTfeimtJUrn6
    XseIOTfeimtJUrn6
    STE6TvB3446dVqR3

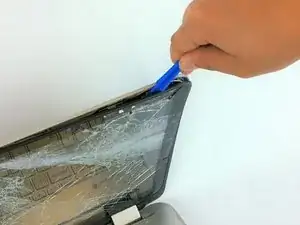

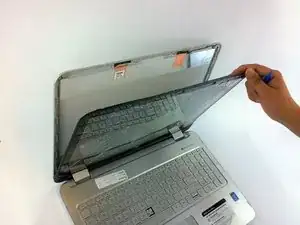

    • Only after removing the two bottom corner screws in Step 1, separate the screen from the back using an opening tool.

  3. lJ4xKkqgiKZZUaTC

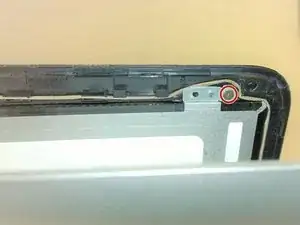

    • Remove the two 2.5 mm Phillips #0 screws with a Phillips#0 Screwdriver.

  4. vn3W2qdXaOrFINZf

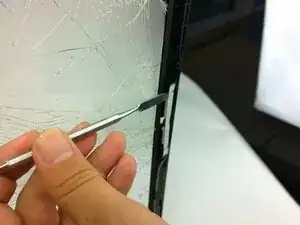

    • Detach the webcam from the damaged screen using spudger.

    • The regular black nylon spudger should be used whenever possible, especially around sensitive internal components.

  5. Jer5VBTO11mW5wk4

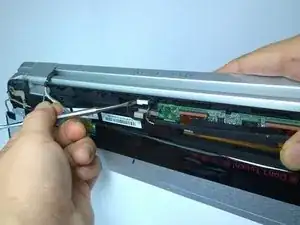

    • Gently detach small white connector with spudger.

  6. FXEBDGXsyoEAUjSA

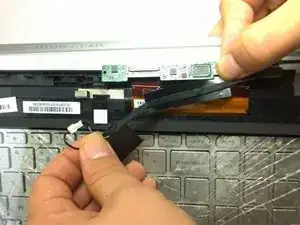

    • Gently remove the tape with the wire to completely separate the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
