HP Envy 17-J013CL Fan Module Replacement

Geschrieben von: Dean Heller
  • Kommentare: 0
HP Envy 17-J013CL Fan Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This step-by-step guide will help you on your journey disassembling the Fan Module.

  1. PNNG2x1ChvtKJerJ

    • Hold the laptop and push the slider all the way till the battery pops out a little.

  2. XEHFPBoSWKLhQImI
    XEHFPBoSWKLhQImI
    1qQwVc3CR2OVCEGk

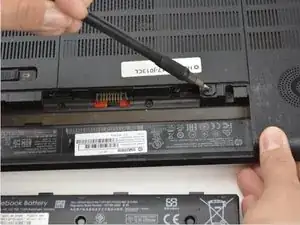

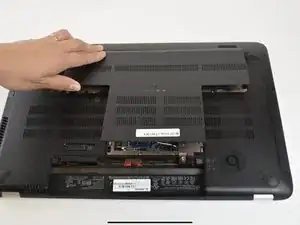

    • Unscrew the screw holding the backplate then pry open the backing.

  3. knkuVbWYTvET3wTK
    knkuVbWYTvET3wTK
    ujNBWKHhFAdYww1y
    QVygAyesPgWWrRCH

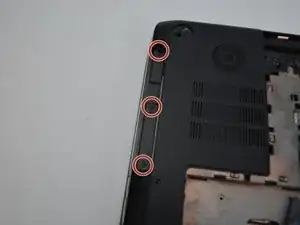

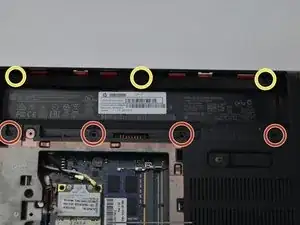

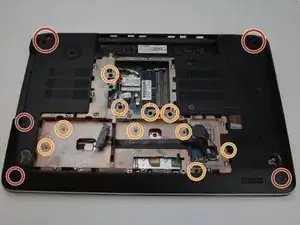

    • Unscrew the screws holding the chassis in place.

  4. gQi4KhGO6TlCP4Xo

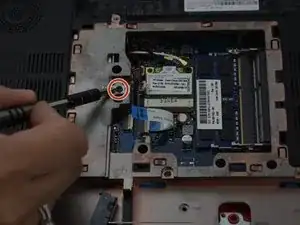

    • Unscrew the Cd-Player and carefully slide the player out to the side.

  5. koJKceAuGtIZ2hJT

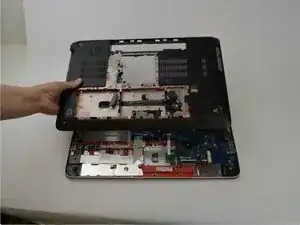

    • Lift the back plate off the laptop, make sure to remove any wires connected to it.

  6. ObsJcOp1n4RGqyDV

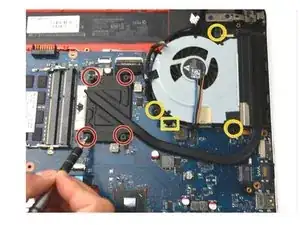

    • Unscrew the fan and unplug the fan from the case.

    • Yellow - Unscrew. Red - Keep

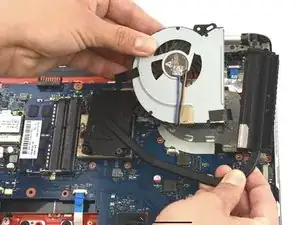

  7. GKgspE5GTIYnHhGa

    • Lift the fan and That’s It!

Abschluss

To reassemble your device, follow these instructions in reverse order. (Don’t forget to plug in each wire)
