Follow this guide if your HP Envy 17-J013CL Memory module needs to be replaced. Memory, or RAM module, keeps information stored on the computer as long as it is turned on and clears when turned off. Used for quickly access applications. The Memory module is a simple part to replace as it can be done within a few minutes without any hassle. Just remember to keep yourself ground or without static electricity because shocking the module OR the port itself can cause failure.
Werkzeuge
-
-
Grab hold of the small battery slider and apply pressure to the right.
-
The laptop itself will push the battery out for you once the switch slides all the way to the right.
-
-
-
Use a PH1-screwdriver to loosen the 7mm screw. The screw will not fully come out as it is held by a washer underneath but will come out enough to open it.
-
-
-
Gently pull the back panel off starting from the battery side towards the back.
-
Pull it back as it snaps out of the holding sockets.
-
-
-

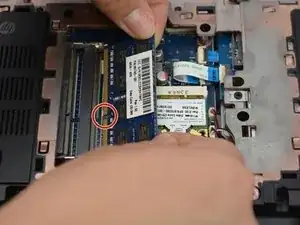

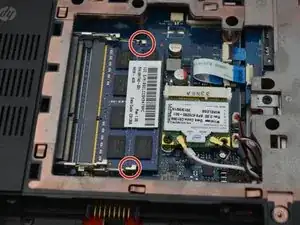

On both sides of the module, place a thumb on each of the metallic holding pins.
-

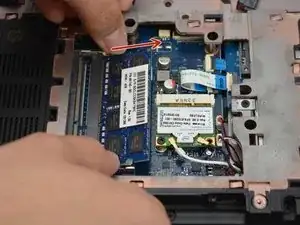

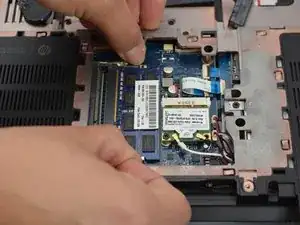

Gently pull on the pins to release the spring holding in the module.
-
To reassemble your device, follow these instructions in reverse order.
