HP Envy 17-J013CL Motherboard Replacement

Geschrieben von: Matt McBride

Kommentare: 4

HP Envy 17-J013CL Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

Use this guide if you want to replace the motherboard of your HP Envy 17-J013CL. The motherboard is the guts of the computer where all the internal parts connect together to make the whole thing work. Without it there is no way for signals and information to pass along one another. There are a lot of pins, sockets, and ports so it is important to stay grounded and be gentle with it. Bending it can also break it!

Werkzeuge

Schritt 1

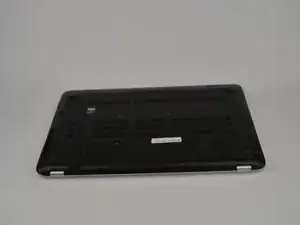

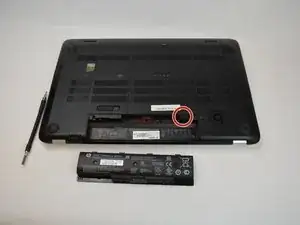

Lay the laptop with the battery facing towards you.
Remember to disconnect the AC cable and other power sources from the device before replacing/repairing parts.

Schritt 2

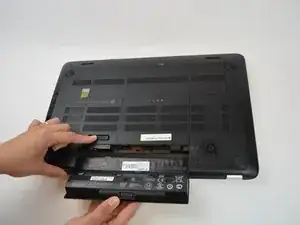

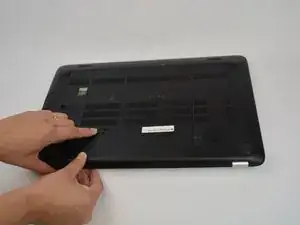

Grab hold of the small battery slider and apply pressure to the right.
The laptop itself will push the battery out for you once the switch slides all the way to the right.

Schritt 3

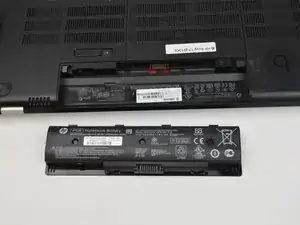

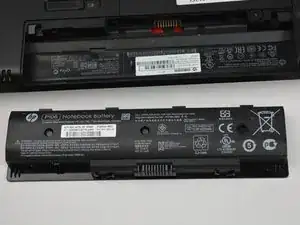

Pull the battery out and let go of the battery slider.

Schritt 4

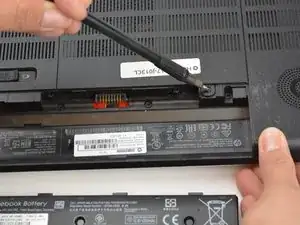

Use a PH1-screwdriver to loosen the 7mm screw. The screw will not fully come out as it is held by a washer underneath but will come out enough to open it.

Schritt 5

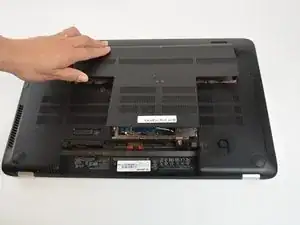

Gently pull the back panel off starting from the battery side towards the back.
Pull it back as it snaps out of the holding sockets.
It is preferred to use both hands when pulling the back panel off to prevent bending it out of shape.

Schritt 6

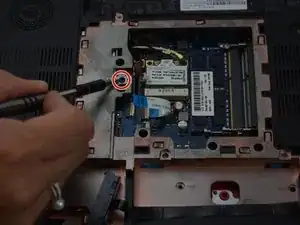

Locate the 7mm screw for the optical drive right next to the WLAN and Memory modules.

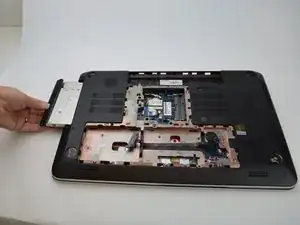

Remove the screw with a PH1-screwdriver to release the CD-drive.

Try to I.D. where the screw for the optical drive is located in a bullet.

Jonathan Gibbs - 28/03/17

Schritt 7

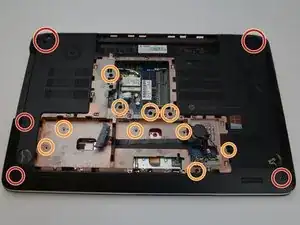

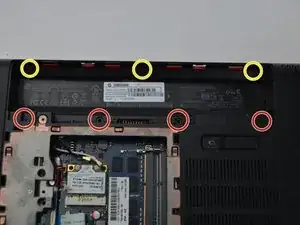

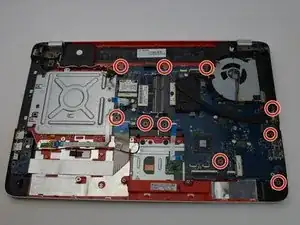

Use a PH1-Screwdriver to remove all the 7mm screws.
Use a PH0-Screwdriver to remove the 3mm screws.
Use the same PH0-Screwdriver for the 2mm screws.

Schritt 8

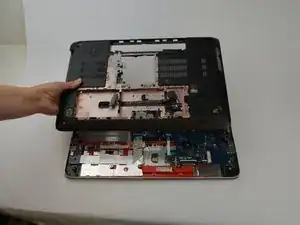

Pull the under panel from the laptop by pulling at the edges once all screws are removed. Gently lift it off and place to the side.

Schritt 9

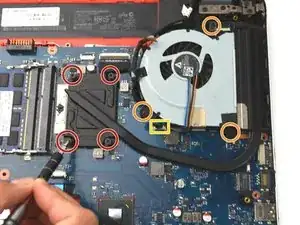

Unscrew the coiled springs indicated in red from the the motherboard.
Remove the 7mm screws with a PH1-screwdriver to loosen the fan.
Unplug the fan from the motherboard.

Schritt 10

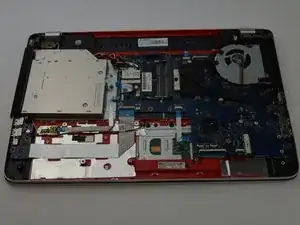

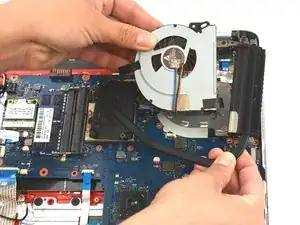

Lift the fan out and then lift out the black grill covering the processor.

'Lift' not life.

Jonathan Gibbs - 28/03/17

Schritt 11

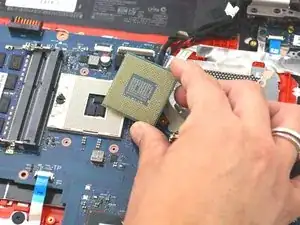

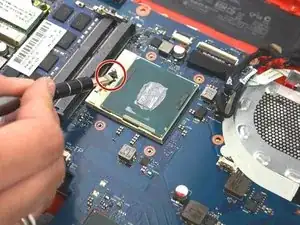

Use a Flathead screwdriver to turn the screw 180 degrees to unlock the processor from the motherboard.
Gently and vertically lift the processor out.
When placing the processor chip back in, make sure the golden triangle is on the top-left corner of the motherboard slot.
Be careful not to bend the pins on the processor chip. Broken pins will render the chip useless.

These photo are very difficult to see and blurry. Should be able to complete the step from photos alone.

Jonathan Gibbs - 28/03/17

Schritt 12

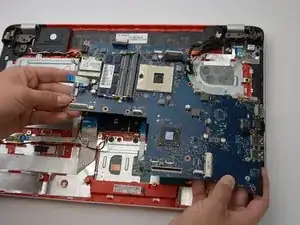

Remove the 7mm screws holding down the motherboard to the frame.

Schritt 13

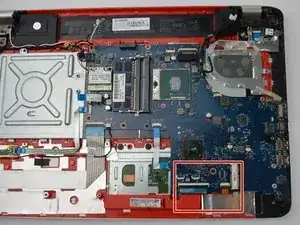

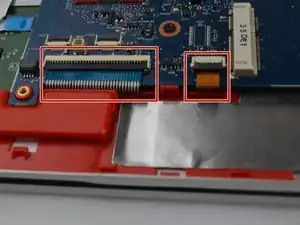

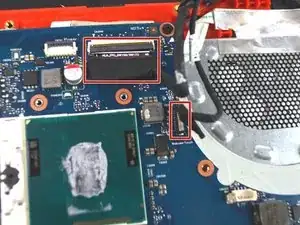

Locate the two bottom cables and lift up the black secure tabs.
Grab the cables by the translucent tabs and gently pull them out of the motherboard.

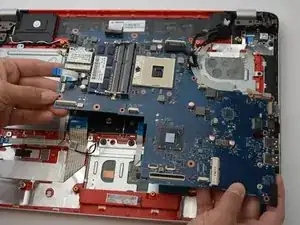

Schritt 14

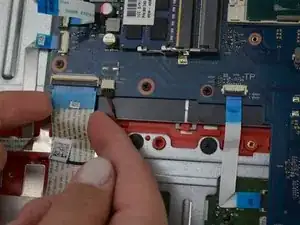

On the left side of the motherboard, remove the two cables by first lifting the black secure tabs and using the translucent tabs to pull them out.

Schritt 15

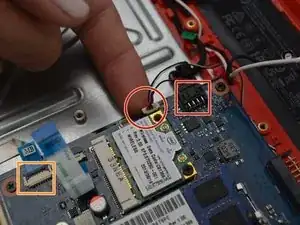

Next to the WLAN, remove the two plugs indicated in red from the motherboard.
Be gentle when removing these two as too much stress can tear the cables from the plug.

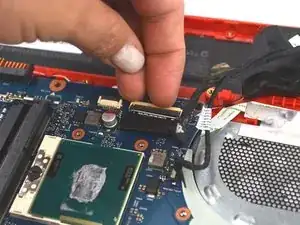

Remove the flat cable from the motherboard by first lifting the securing black tab and pulling it out.
