HP Envy 23-d060qd TouchSmart Hard Drive Replacement

Geschrieben von: Zachary Dicks
  • Kommentare: 1
HP Envy 23-d060qd TouchSmart Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

My computer doesn't have enough room anymore for the music and photos that I want to store! I don't want to say good-bye to any files. What can I do so that I am able to store more files on my computer? Replacing the hard drive won't be too hard!

  1. HHdGbQZls1tNliKW

    • Use your hands to unclip the plastic snaps on the back panel of the device.

  2. SeTZ4rGMyEEAMq4g

    • Remove the three 11.5mm PH2 screws from the back panel.

    • The screws will not fall out of the back panel, but they will unscrew to release the back panel.

  3. AoMMpGYbbdpOjF2O

    • Now, take the back panel off by pulling at it gently with your hands.

  4. nHJnaENQgQNmSIh3

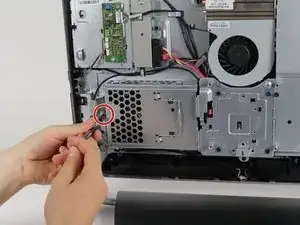

    • Remove the one 13.5mm PH2 screw.

  5. Leo1R5FCpWnUOmR3

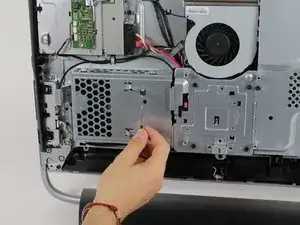

    • Unsnap the wire mechanism to release the hard drive.

  6. AZETcTkAFtXYXXiN
    AZETcTkAFtXYXXiN
    Z4BdScuC4EfFSgvI

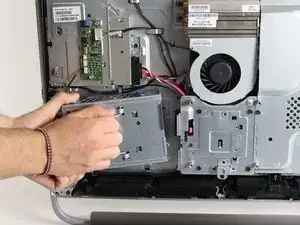

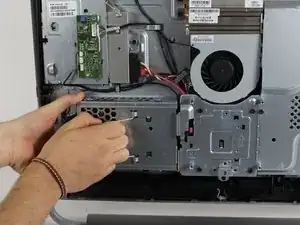

    • Detach the hard drive assembly by pulling it out of the socket.

  7. 2BQX2QXYAqhFIilr

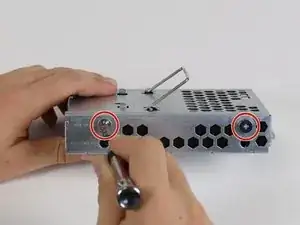

    • Remove the two 8.5mm PH2 screws on each side of the hard drive cover.

  8. yBVyUnPSZEhHUSbt

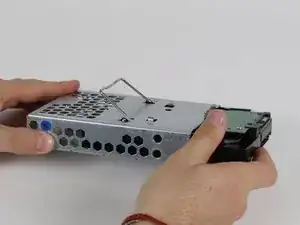

    • Detach the hard drive cover by sliding it off from the rest of the hard drive

    • Replace the old hard drive with your new hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
