HP Envy 23-d060qd TouchSmart Speaker Replacement

Geschrieben von: Zachary Dicks
  • Kommentare: 1
HP Envy 23-d060qd TouchSmart Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

My computer won't play audio even though I've checked all of the connections. How can I have a dance party without any audio? Luckily the party starts in 15 minutes so I have time to replace the speakers.

  1. HHdGbQZls1tNliKW

    • Use your hands to unclip the plastic snaps on the back panel of the device.

  2. SeTZ4rGMyEEAMq4g

    • Remove the three 11.5mm PH2 screws from the back panel.

    • The screws will not fall out of the back panel, but they will unscrew to release the back panel.

  3. AoMMpGYbbdpOjF2O

    • Now, take the back panel off by pulling at it gently with your hands.

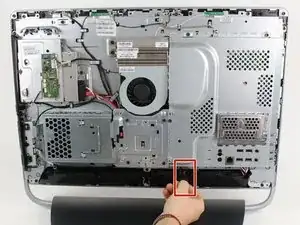

  4. yut1r3XtjKhWx1XG

    • Remove the receiver for the keyboard and mouse with your hands.

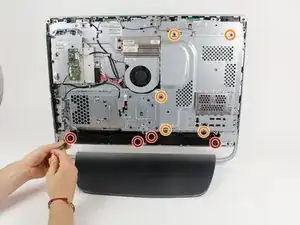

  5. YOkXkb3Thk4TDQg3
    YOkXkb3Thk4TDQg3

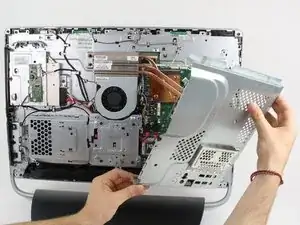

    ZZETDCqyh5jOva2T

    • Remove the four 17.5mm T15 screws from the speakers.

    • Remove the five 7.5mm T15 screws from the cover plate.

    • Remove the cover plate with your hands.

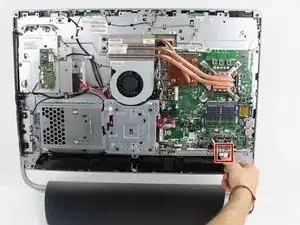

  6. SPYDL5NESpVS5ngF
    SPYDL5NESpVS5ngF

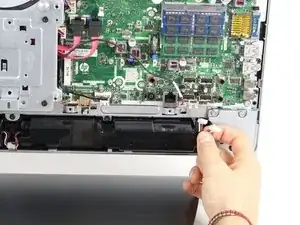

    ovFMKqrWZAqXnf4v

    • Disconnect the two speaker connections from the motherboard with your hands. Use your hands to gently pull the plastic piece at the ends of the wires.

    • Be gentle when disconnecting any wired connections. Pulling on the wires can damage them.

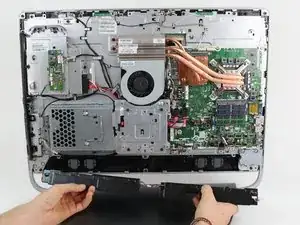

  7. oObfLwLbTBBEQIKr
    oObfLwLbTBBEQIKr

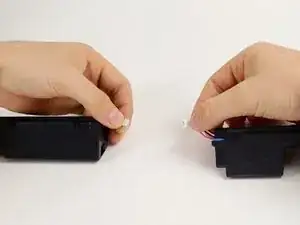

    jDH5asdjWKnIbKrj

    • Remove the speakers from the computer, and if needed, separate by disconnecting the wires between them.

    • Be gentle when separating wired connections. Pulling on the wires can damage them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
