HP Envy 4-1105dx Display Replacement

Geschrieben von: Parvathy Nambidi
  • Kommentare: 0
HP Envy 4-1105dx Display Replacement

Schwierigkeitsgrad

Difficult

Schritte

17

Zeitaufwand

2 Stunden

Einleitung

Use this guide to replace the broken display on your HP Envy 4-1105dx.

  1. eI12hYstxssOBymg

    • Power off the device before beginning disassembly. Disconnect all external devices.

    • Flip the device on its back.

  2. 44HfElHIyjBHKiDH

    • Unscrew and remove the one 7.5 mm Phillips-head screw using Phillips #1 screwdriver.

  3. wkMaSxtTwOJbjoEW

    • Unscrew twelve 6.0 mm Phillips-head screws using Phillips #1 screwdriver.

  4. K2TsKvA1sPCNcR1e

    • Use the plastic opening tool (which is short and has a thin end for prying open device parts) to pry open the back case of the device.

  5. 2xsNmvGynSJfEXhO

    • Once the device is open, move the ribbon cable to the side.

  6. qcgdCJtBRPhPF2RK

    • Use the flat end of a plastic spudger to disconnect the battery cable from its socket in the motherboard.

  7. ZfJdvWvBskgkopEk

    • Unscrew and remove the three 4.0 mm Phillips-head screws that hold the battery in place, using a Phillips #1 screwdriver.

  8. iVoQXS51dDMSiEYS

    • Lift the battery up and remove.

    • Removing the battery can dislodge the touchpad bracket. Place the battery carefully over the alignment pins.

  9. MZSVaFKSJHx4hMiH
    MZSVaFKSJHx4hMiH
    hCDeagGog3CDLeJe
    QT1rjOGqkRnN5VLT

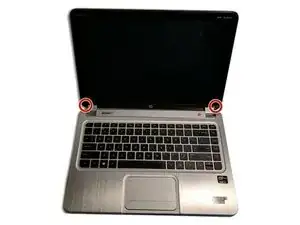

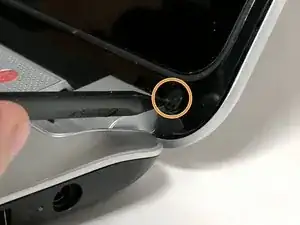

    • Close the device and turn it right-side up. Locate the two screw covers on the left and right side base of the display panel.

    • Remove the screw covers, using the black plastic spudger.

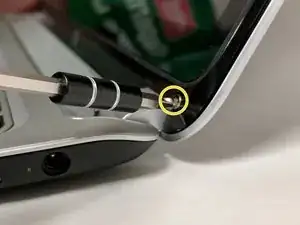

    • Remove the two 3.0 mm Phillips-front screws on the left and right hinges that secure the display panel to the computer, using a Phillips #1 screwdriver.

  10. ov2UnrIHUXQcyOwi
    ov2UnrIHUXQcyOwi
    nRWkrCOCvs6lIClf
    1dkSiCKx1onEs3BD

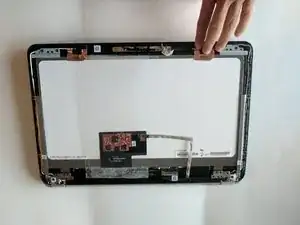

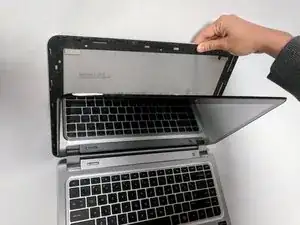

    • Pry open the plastic bezel case of the device using the plastic spudger. If the plastic spudger doesn't work, carefully use the metal spudger.

    • Loosen the edges of the case from all four sides of the display panel.

    • Be careful not to use hands while opening, as the edges of the back case are sharp.

    • Once the back case pops out, close the laptop exposing the back display.

  11. TChbcCKok51DX2n1
    TChbcCKok51DX2n1
    EHmdBMEJ1BwGw6Sf

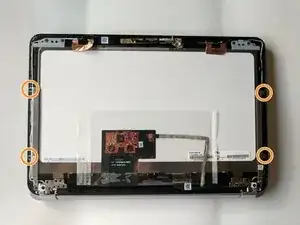

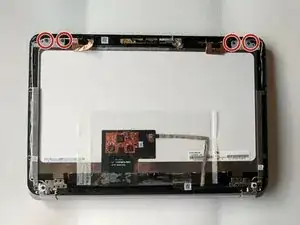

    • Remove the four 4.0 mm Phillips display panel screws using Phillips #1 screwdriver.

    • Remove the four 2.0 mm Phillips screws using Phillips #00 screwdriver.

  12. vII2G5t3QvPZAnPn
    vII2G5t3QvPZAnPn
    AE2h5uRfMU2EBSZb
    nAEu2WVdNlYDfptT

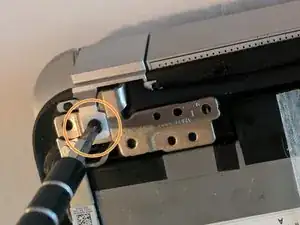

    • Remove the four 4.0 mm Phillips silver screws on the hinges using a Phillips #1 screw driver.

    • Remove the two 6.0 mm Phillips black hinge cover screws using a Phillips #0 screw driver.

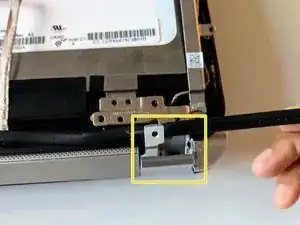

    • Flip and remove the hinge covers using a plastic spudger.

    • While flipping, be careful not bend the screen brackets.

  13. PKtbGWdlH65YXWsa
    PKtbGWdlH65YXWsa
    cEvmlD3jmCfM3Nb4

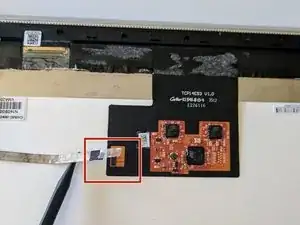

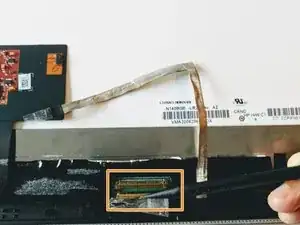

    • Disconnect the ribbon cable on the bottom of the display panel using a plastic spudger.

    • Disconnect the adjacent golden LCD connector using a plastic spudger.

  14. xjAT6vNJw3F1bQiM

    • Remove the golden tape adhering to the display panel using a plastic spudger.

  15. XZj1cA2sMpUoLwUv

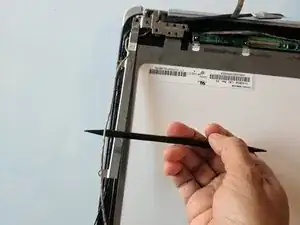

    • Remove the white color wifi antennas from the display panel using a plastic spudger.

  16. l6LK3V6blRgen1Rh
    l6LK3V6blRgen1Rh
    sKIonXCCb5Zr6qeB
    5FEeYAPQUqN4Nkg1

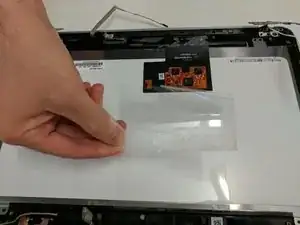

    • Separate the transparent plastic tape that covers the circuit board using hands.

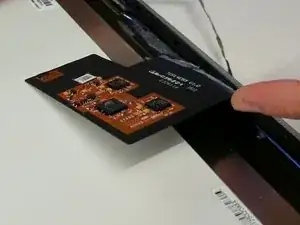

    • Carefully flip the circuit board.

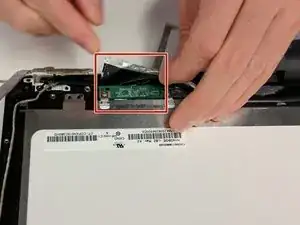

    • Remove the black tape adhering to the green circuit board that is connected to the display panel.

  17. MSL5g43AFSB14dwP
    MSL5g43AFSB14dwP
    6CDrNZBfNm16uvXL

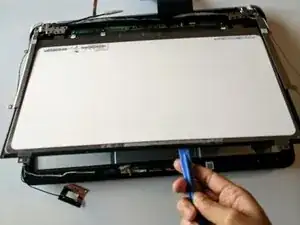

    • Using a plastic prying tool, remove the display panel.

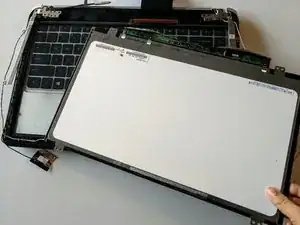

    • This is the disassembled screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
