HP Envy 4-1105dx Keyboard Replacement

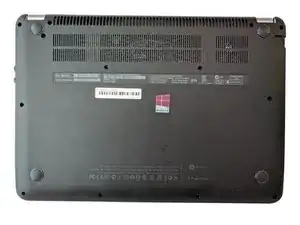

Flip the device on its back.

Unscrew and remove the one 7.5 mm Phillips-head screw using Phillips #1 screwdriver.

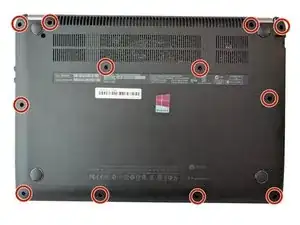

Unscrew twelve 6.0 mm Phillips-head screws using Phillips #1 screwdriver.

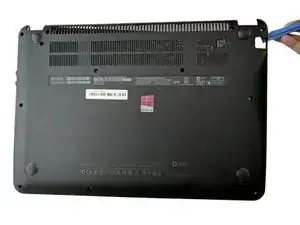

Use the plastic opening tool (which is short and has a thin end for prying open device parts) to pry open the back case of the device.

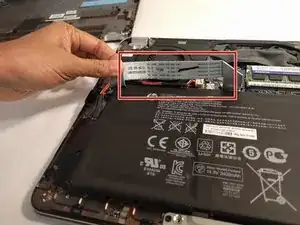

Once the device is open, move the ribbon cable to the side.

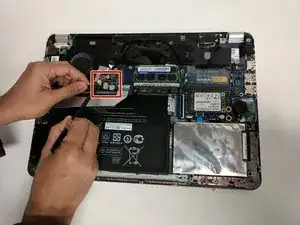

Use the flat end of a plastic spudger to disconnect the battery cable from its socket in the motherboard.

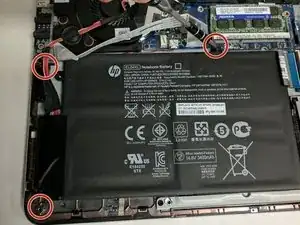

Unscrew and remove the three 4.0 mm Phillips-head screws that hold the battery in place, using a Phillips #1 screwdriver.

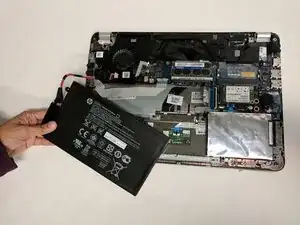

Lift the battery up and remove.

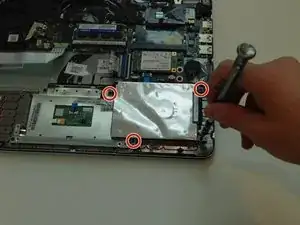

Remove the four 4.0 mm screws that hold down the hard drive case using a Philips #1 Screwdriver.

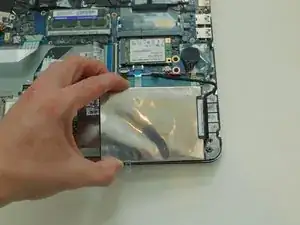

Move the hard drive case and hard drive so that you can easily reach the hard drive cable.

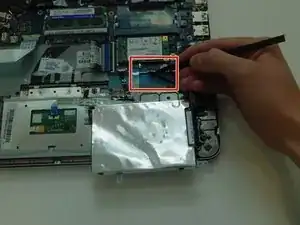

Use the plastic spudger tool to loosen the hard drive SATA cable connection by pushing it away from the motherboard.

Once it is loose, pull the hard drive out of the socket.

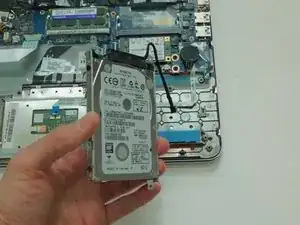

Remove the hard drive from the device.

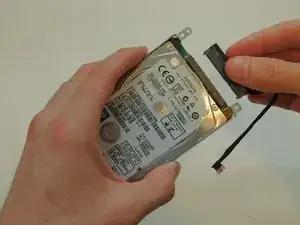

Pull out the hard drive cable from the hard drive, and set it aside.

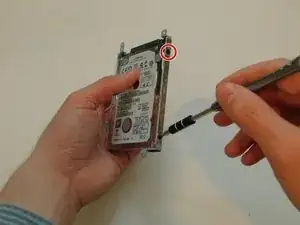

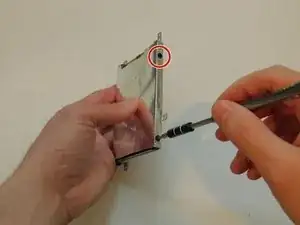

Remove the four 3.0 mm screws that attach the hard drive case to the hard drive using a Philips #1 Screwdriver. If the screwdriver is too big, try #0 sized screwdriver.

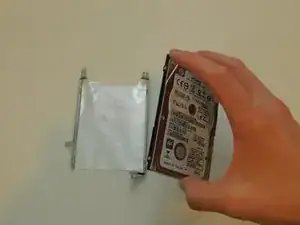

Remove the hard drive from the hard drive case.

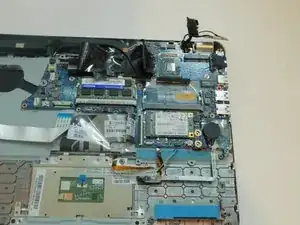

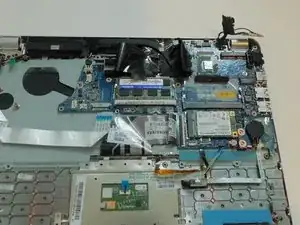

Prepare to disconnect the motherboard from any components you have not already removed, including the screen, touchpad, and keyboard.

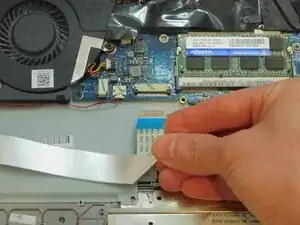

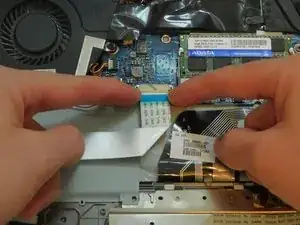

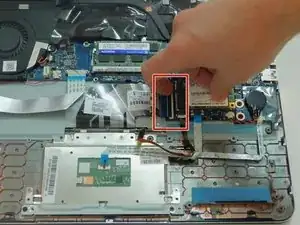

Remove the ribbon cable running from under the motherboard by undoing the latch mechanism with your fingernail, and pulling out on the edge of the connector. (This is the keyboard cable).

Flip up the black connector with your fingernail or using the plastic spudger.

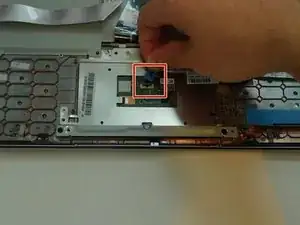

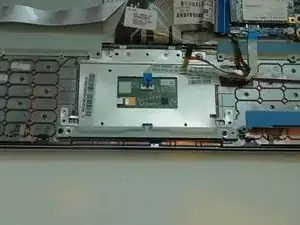

Unplug the trackpad by pulling up on the touchpad board cable.

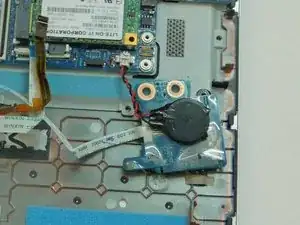

Use the plastic spudger to gently pry out the small chip next to the touchpad.

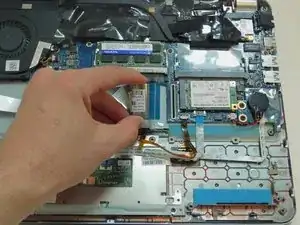

Disconnect the ribbon cable running to the ports on the right-hand side of the laptop.

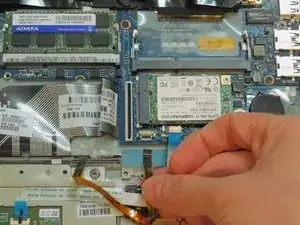

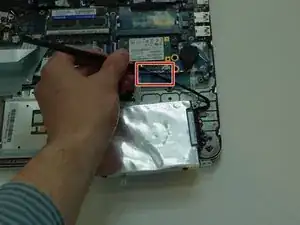

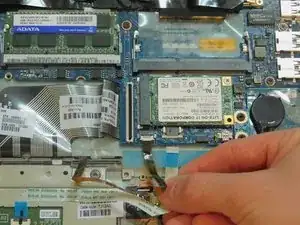

Disconnect the two small ribbon cables in front of the hard drive. The larger one is the touchpad board cable, and the smaller one is the keyboard light cable.

Using a Phillips #0 screwdriver, remove the two 3.0 mm screws holding the speaker and motherboard to the plastic frame.

Move the speaker out of the way. It will stay attached to the motherboard. The cord connection cannot be disconnected.

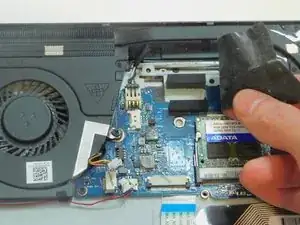

Pull back the black plastic covering over the northbridge.

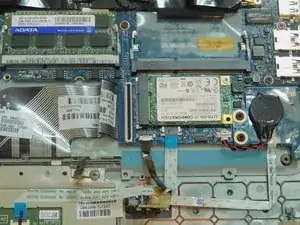

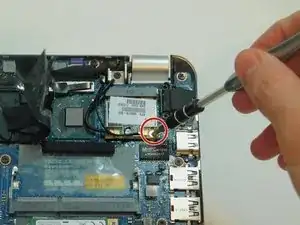

Using a Phillips #0 screwdriver, remove the 3.0 mm screw securing the wireless LAN adapter.

Detach the wireless LAN adapter from the board.

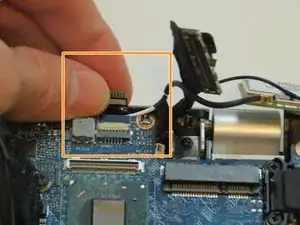

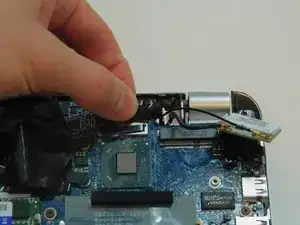

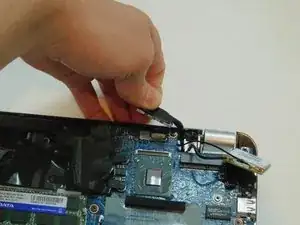

Using your fingers, locate the display panel cable under the hinge and disconnect it.

Disconnect the multicolored power connector for the USB/audio board by first probing it gently with a plastic spudger, then pulling it free.

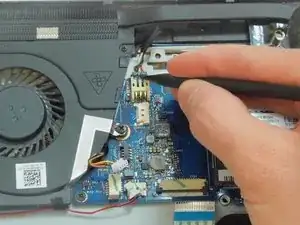

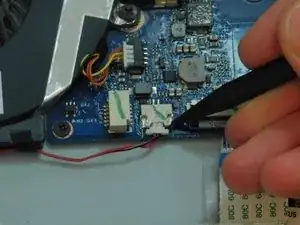

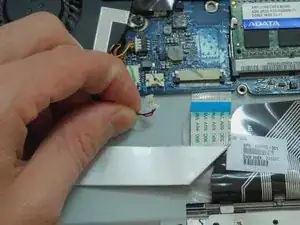

Disconnect the red and black power connector for the subwoofer by first probing it gently with a plastic spudger, then pulling it free with your fingernails.

Peel back more of the black plastic to reveal the multicolored power connector for the cooling fan.

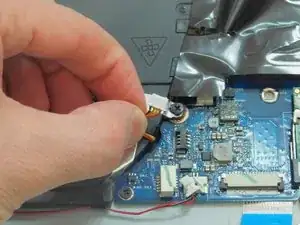

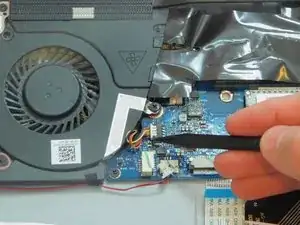

Disconnect the power connector for the cooling fan by probing it with the spudger, then pulling it free.

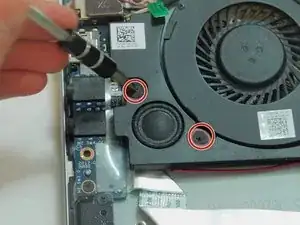

Using a Phillips #0 screwdriver, remove the two 2.0 mm screws holding the right speaker in place.

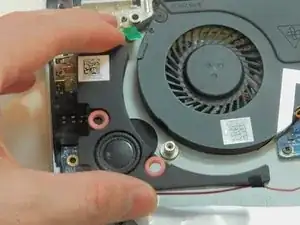

Remove the right speaker.

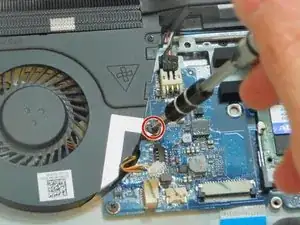

Using a Phillips #0 screwdriver, remove the 2.5 mm screw holding the cooling fan in place.

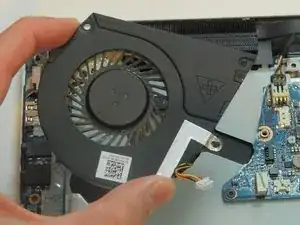

Lift out the cooling fan.

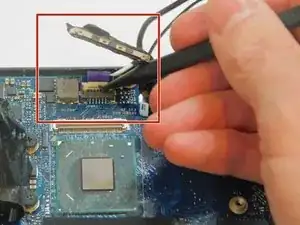

Using the plastic spudger, remove the power button cable. This is the small, purple ribbon cable at the back of the motherboard.

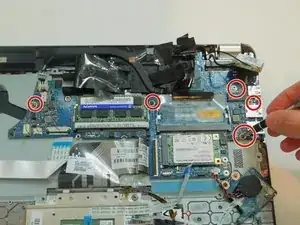

Using a Phillips #0 screwdriver, remove any remaining screws attaching the motherboard to the rest of the laptop.

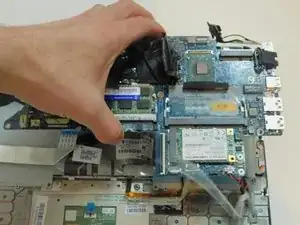

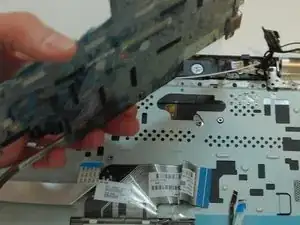

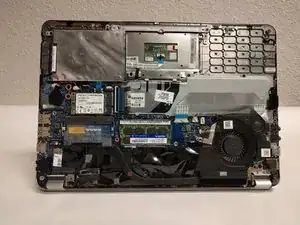

Gently lift out the motherboard and heat sink. If the motherboard has been fully disconnected from other components, it will lift free easily.

If the motherboard seems stuck, do not force it. Instead, return to previous steps to see if there is a connection or screw you have missed. Also check for tape, glue, or similar materials that may be attached to the motherboard.

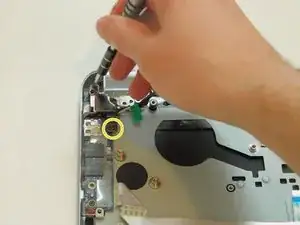

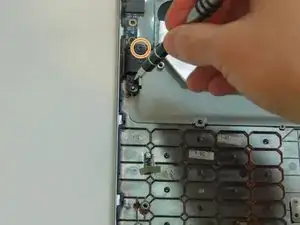

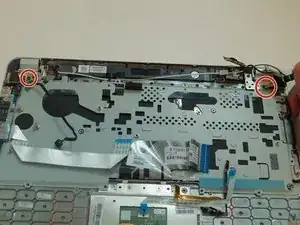

Unscrew the two 3 mm screws from the 2 silver metal hinges using a Philips #1 Screwdriver.

Unscrew the two 2.5 mm screws from the black metal anti-theft locking component using a Philips #1 Screwdriver.

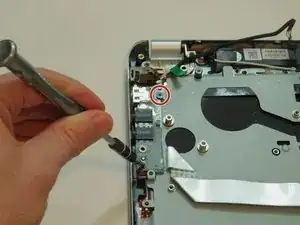

Unscrew the two 3.0 mm screws from the silver metal port using a Philips #1 Screwdriver.

Unscrew the 2 3.0 mm screws holding the chip with the multiple ports using a Philips #1 Screwdriver.

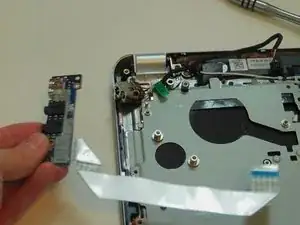

Move the chip with multiple ports to the side.

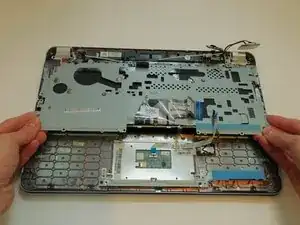

Use your fingers or a plastic or metal spudger tool to start prying up the metal case to reveal the keyboard.

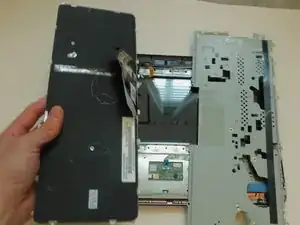

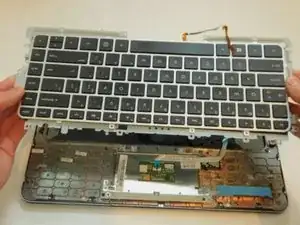

Separate the metal case from the keyboard by peeling off the tape that connects them.
