HP Envy 700-030qe CPU Fan Replacement

Geschrieben von: Jessica Resta
  • Kommentare: 4
HP Envy 700-030qe CPU Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show you the process of replacing the CPU fan on the HP Envy 700-030qe desktop computer.

  1. ErVU5euAnl6nIfhM
    ErVU5euAnl6nIfhM
    svqSDJAIdkM4G4I1
    IxjUk5HPwXdaXDBQ

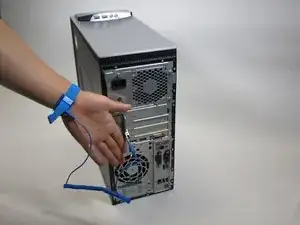

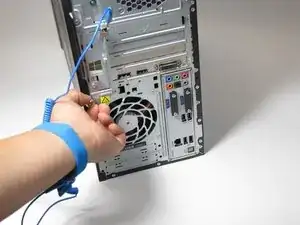

    • Make sure that you are wearing your anti-static wristband. This will prevent damaging any internal parts with any built up static electricity.

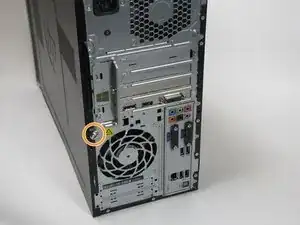

    • Unscrew the 10.5mm screw on the left of the desktop using your hand.

    • If it is too tight you may use a torx-head screwdriver or a flat-head screwdriver.

  2. LKSDgKAaFgNmmPYB
    LKSDgKAaFgNmmPYB
    KCHJM2RKEZQHQoUe

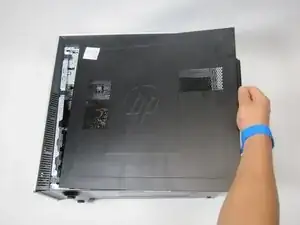

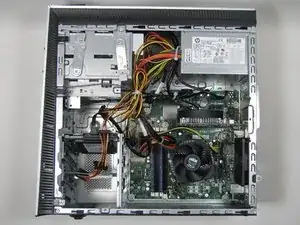

    • Next, remove the side panel by sliding it towards the back of the desktop and pulling up, as shown.

  3. 3WqnRQKDYcaUuLqK

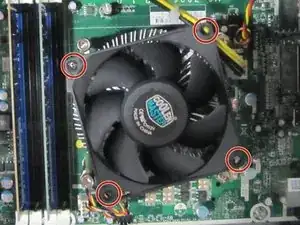

    • Remove the four 120mm Phillips #000 head, 5 mm screws holding the fan.

  4. RF4NbZjVIccq6G6g

    • Carefully pull up and disconnect the fan's power cable.

  5. TIATqYDcNA4NYIFe

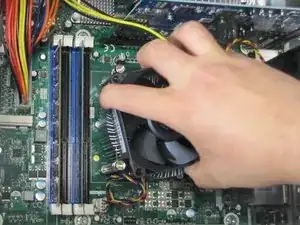

    • Remove the fan by pulling up carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jessica Resta

Mitglied seit: 01/10/15

235 Reputation

4 Kommentare

Im looking to replace the fan in mine, what size would I look for, or even what model would be best?

AzyP Zero -

Did you ever determine what fan to use ? I need to order one for my system.

Dennis -

I bought the Philips #000 Screwdriver from iFixit as listed above. It is not even close to what is needed. That screwdriver is like a jewelers tiny Philips head. It needs a much bigger screwdriver.

Dennis -

Fails to mention the most important part of the entire procedure. That would be to remove the old thermal paste from the top of the CPU with 91-99% isopropyl alcohol and re-apply new thermal paste. Short of doing this almost guarantees failure to maintain proper cooling.

Guy Martin -
