HP Envy 700-030qe RAM Replacement

Geschrieben von: Sam Wheeler
  • Kommentare: 0
HP Envy 700-030qe RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

3 Minuten

Einleitung

In this guide, we will show you the proper way to remove your RAM chips from your computer.

  1. tqoFNtApNEnYv3p3
    tqoFNtApNEnYv3p3
    r5g4SxTJGXHYK5ye
    Hq3PMNhLErWDxnVv

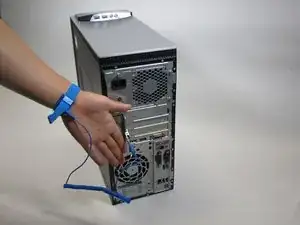

    • Make sure that you are wearing your anti-static wristband. This will prevent damaging any internal parts with any built up static electricity.

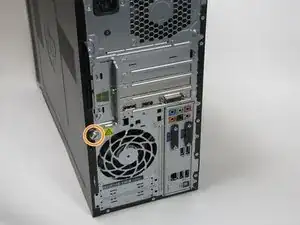

    • Unscrew the 10.5mm screw on the left of the desktop using your hand.

    • If it is too tight you may use a torx-head screwdriver or a flat-head screwdriver.

  2. ZLM3MqbGEePWcPEd
    ZLM3MqbGEePWcPEd
    eM4jfVFkpAaYkdUR

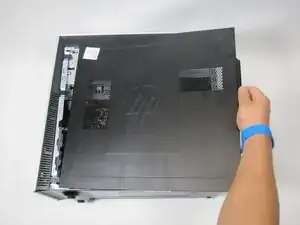

    • You can now slide off the side panel of the desktop.

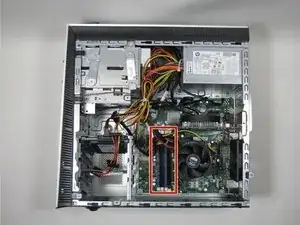

    • You should now have an opening on the side of your computer as shown in the second picture.

    • The location of the RAM is highlighted in red.

  3. Z5tBrAww26Fm12sT
    Z5tBrAww26Fm12sT
    IKOupOHkSevsB5la

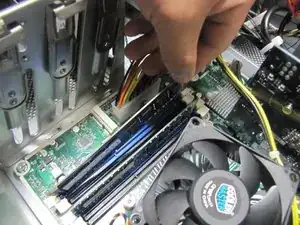

    • Undo the clips on each end of the chip as shown in the second picture.

    • Then you may carefully remove the RAM chips by pulling them out by their the ends.

    • Make sure you pull the chips out by the ends and not grabbing the entire thing. This may damage the chips.

    • Remember the slots that you take the RAM chips from. You must put the two replacement chips in the same slots.

Abschluss

To reassemble your device, follow these instructions in reverse order.
