HP Envy Battery Replacement

Geschrieben von: Connor French
  • Kommentare: 9
HP Envy Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

45 Minuten

Einleitung

Has your battery seemingly died far earlier than expected in your HP Envy 15 x360 laptop? This guide will show you how to fix a common cause of a dead battery.

  1. fUrsvNUfvKSkyPrZ

    • Plug in your computer to charge and take a look at the light coming from near the charging port.

    • If the light is a steady orange or white, your computer should be charging normally and this guide is no longer necessary.

    • If the light is a blinking white, your computer is not charging properly and you should proceed to the next step.

  2. tOZG4KE4Zs1eQmCw

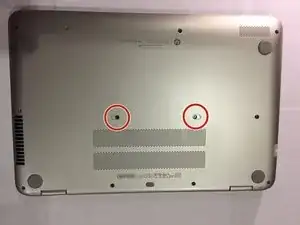

    • Flip the laptop over on its back and remove the two depressed stickers in the middle to reveal the two central 6.0 mm Phillips-head screws.

    WARNING: There are two more screws to be removed! They are located under the rubber feet in back, by the hinges. Peel off the feet to expose the screws, and then unscrew them.

    I learned about them from this article, after spending 10 minutes trying to get the back corner free.

    https://support.hp.com/us-en/document/c0...

    James Grove -

  3. lLbyIpNglHXfisqC

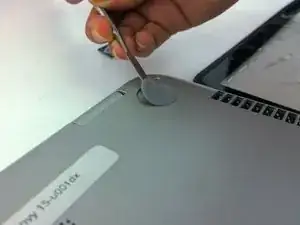

    • Use a spudger to pry up the two rear feet near the hinge.

    • You don't need to pry up the two feet near the front of the laptop as there are no screws underneath them.

  4. ZbByKGoyxNsfnB2e
    ZbByKGoyxNsfnB2e
    GbJylIpdPjDtTGg1
    DjTTGCHNZgGhbuyG

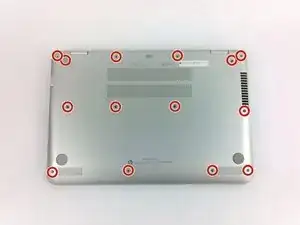

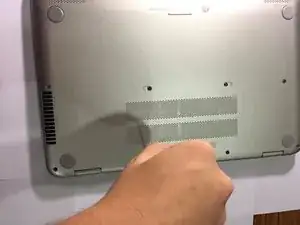

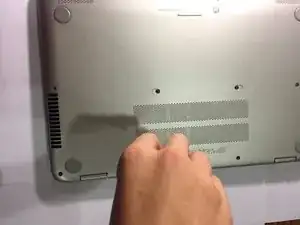

    • Use a Phillips screwdriver to remove the 14 screws securing the back cover.

  5. l2FCPZVVCbDMfNMU
    l2FCPZVVCbDMfNMU
    TxEyfiCKRuntCCpj
    oQwZCrinJF3cGrKY

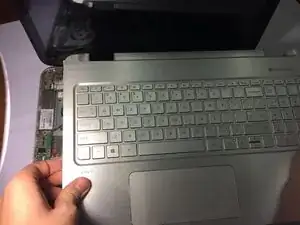

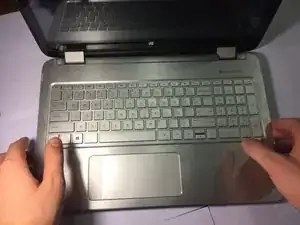

    • Once all of the screws have come out, flip the laptop over and open the lid so that the keyboard is face up.

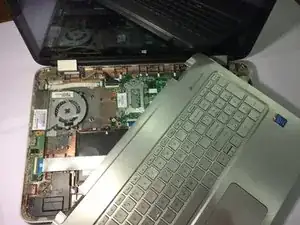

    • Pop the keyboard from the sides and carefully lift it off of the parts underneath.

    • DO NOT pull the keyboard away from the rest of the laptop too quickly. There are various cords and wires connecting the keyboard section to the rest of the computer that should remain plugged in.

  6. dBhdZMNgygdgIUiT

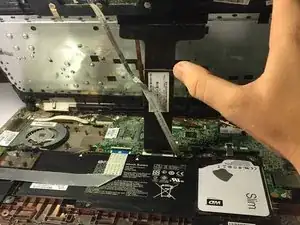

    • Carefully lay the keyboard section against the open screen of your laptop without unplugging anything.

    • Check the inside of your laptop to make sure there are no glaringly obvious problems (insects, missing parts, scorched parts).

  7. A4RdqBbLH1tKAySr
    A4RdqBbLH1tKAySr
    FMOSRvbA4FumZfbF
    PUEaRP4iYTUlqvRB

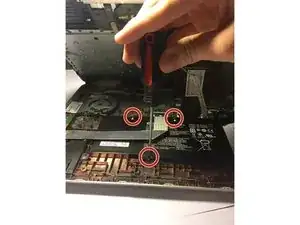

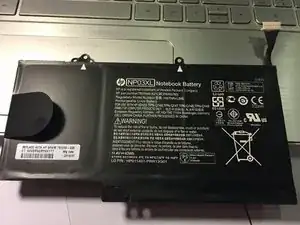

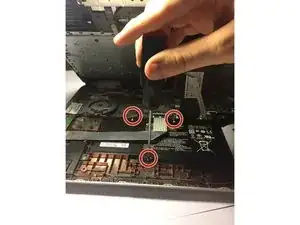

    • Locate the battery and the three 4.0 mm Phillips-head screws that hold it in place.

    • Unscrew these three screws and use the tab attached to the battery to remove it safely from the laptop.

    • Unplug the cord attaching the battery to the motherboard. This is the only cord that should be unplugged throughout the entire fix.

  8. JecOcKRJQltianYE
    JecOcKRJQltianYE
    5hUCuWwPJAuuAcXx

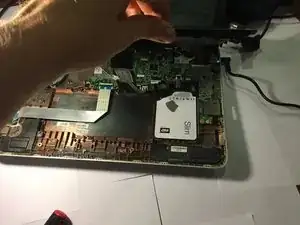

    • Once the battery is safely removed, plug the charging cord into the charging port on the side and plug the other end into the wall.

    • DO NOT turn the computer on or touch any of the internal components during this step.

    • If the light is on after plugging it in, you have just confirmed that something is wrong with the battery, which means you're on the right track!

    • If the light on the side blinks upon plugging it in, the battery is not the problem. If that is the case, put your laptop back together and consult an expert.

    • Unplug the charging cable.

  9. EVm33Bw2HW4BWpek
    EVm33Bw2HW4BWpek
    dFXXnWSuF2mMkxVV
    tBLwtEKhjAQWSoVk

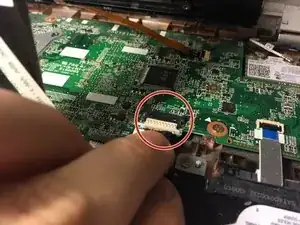

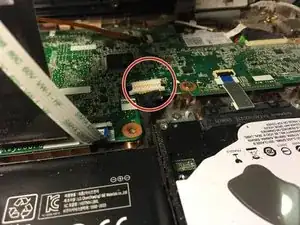

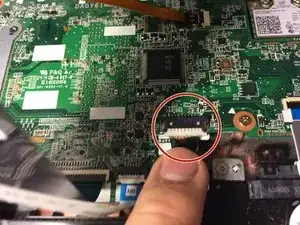

    • Place the battery back where it was previously and find where it was plugged in.

    • Due to general wear and tear, often this will become slightly unplugged, causing the laptop to fail to charge properly.

    • Plug the cable on the battery back into the port on the motherboard and make sure it is secured.

  10. WbRySSWZuXioyxyx

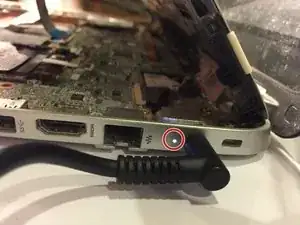

    • Run the earlier test from Step 7 that you performed on the laptop with the battery inside.

    • DO NOT turn the computer on or touch any of the internal components during this step.

    • If the light comes on and doesn't blink, you have fixed the problem! Congratulations!

    • If the light still blinks, you may have to purchase a new battery for your laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
