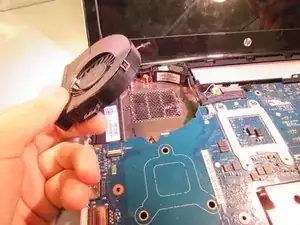

HP Envy M6-1205DX Fan Replacement

Geschrieben von: Alex Wasilewski

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 25 Minuten

Einleitung

Many user have problems with their computer over heating and that is due to a faulty fan or one that is clogged up. If you don't want to replace it and think it only needs to be cleaned you can simply remove it and clean it with computer duster.

Werkzeuge

Schritt 1

Lay the device face down to begin.

Schritt 2

Slide the release mechanism to the left to release the battery.

Schritt 3

Remove the battery.

Schritt 4

Using a Phillips #1, remove the 8 10.6mm screws.
Also using a Phillips #1, remove the 8.6mm screw.

Schritt 5

Slide the center panel down to remove it.

Schritt 6

Using a Phillips #1, remove the 3.5mm screw.
Our computer did not come with a hard drive so you should have one in the empty hole. We have marked where we believe the screws will be in orange.
Using a Phillips #1, remove the four 10.6mm screws.

There is another screw to remove here, to the left of the big circle under the HDD

Jacob Hudson - 26/03/21

Schritt 7

Pull the disk drive out to remove it.

Schritt 8

Using a Phillips #1, remove the two 2.4mm screws.

Schritt 9

Flip the black tab up on the clamp that holds the ribbon cable in place.
Pull the cable back with your fingers or a pair of tweezers.

Schritt 10

Flip the computer back over
Use the plastic opening tool to pry the keyboard up .

Schritt 11

Carefully lift the keyboard up.
Flip up the black tab holding the large ribbon cable down.
Push both sides of the small white tab forward to release the small ribbon cable.
Pull both the cables out to remove them.
Remove the keyboard.
