Einleitung
Use this guide to replace the digitizer screen on an HP Envy 15 TouchSmart. You may need to replace the digitizer if the laptop no longer detects touch or if the glass has cracked or shattered.
Werkzeuge
Ersatzteile
-
-

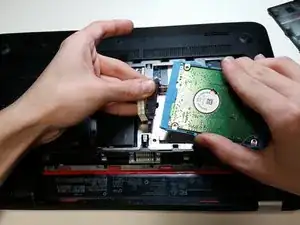

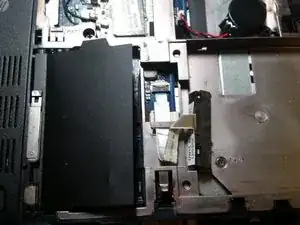

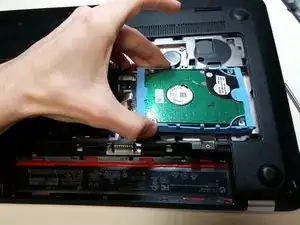

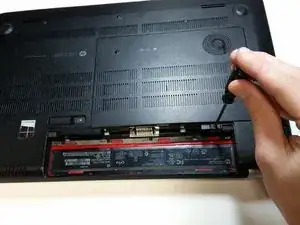

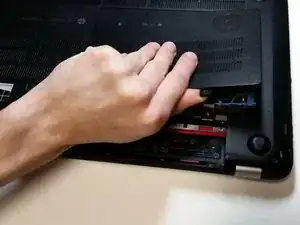

Remove the hard drive and disconnect its ribbon cable from both the hard drive and the motherboard.
-
-
-

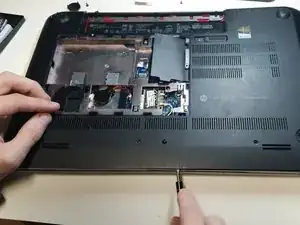

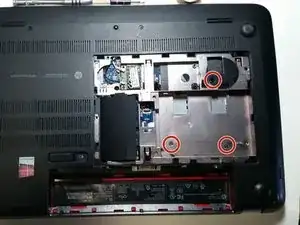

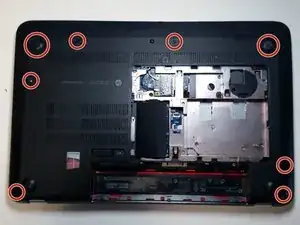

Remove the indicated screws to loosen the bottom casing.
-

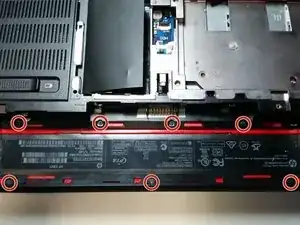

Remove the two feet indicated to reveal the screws underneath.
-
-
-
Gently pry the edges to loosen the case.
-

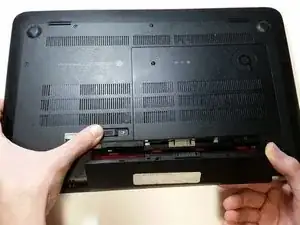

Once loose, lift and remove the plastic casing to reveal the motherboard.
-
-
-

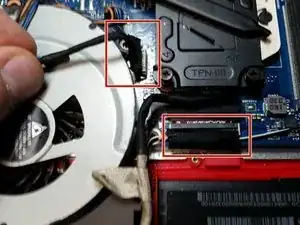

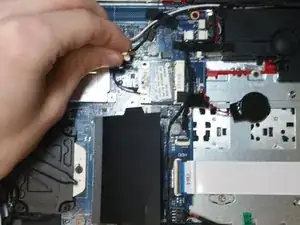

Lift and detach the wireless antenna cables.
-

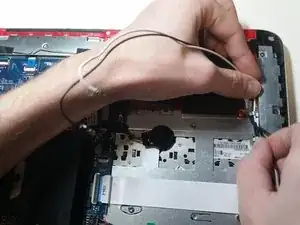

Lift and de-route the wires from their tracks until you reach the display hinges.
-
-
-

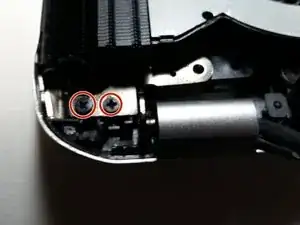

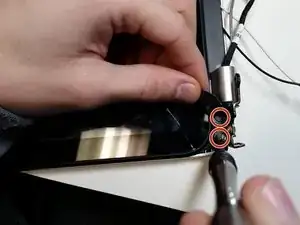

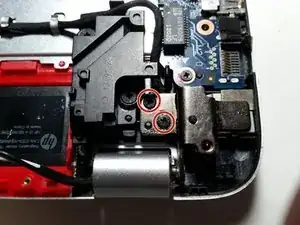

Remove the screws from each hinge.
-
Lift the hinges with pliers until they are perpendicular to the case.
-
Lift and remove the bottom of the laptop from the screen.
-
-
-

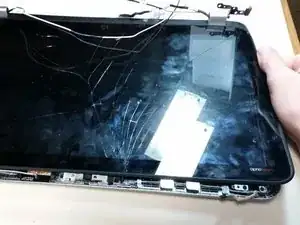

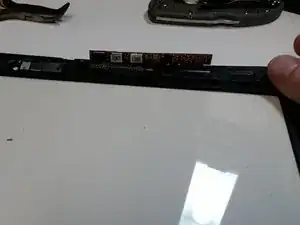

Using a pry tool as necessary, remove the digitizer from the rest of the screen panel. Be careful around the top edge as there are delicate components beneath.
-
-
-

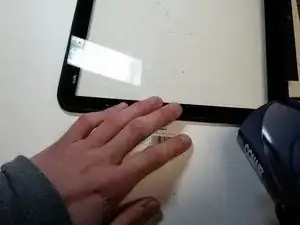

Using a heat gun, carefully loosen the adhesive connecting the digitizer to its plastic border.
-

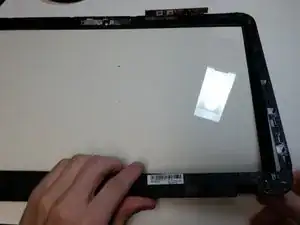

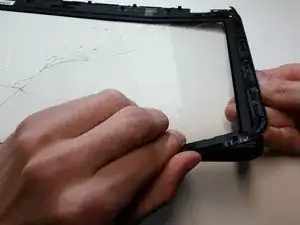

Gently peel the digitizer away from the plastic border.
-
To reassemble your device, follow these instructions in reverse order.
