HP Envy TouchSmart 15 RAM Replacement

Geschrieben von: Robert Patterson
  • Kommentare: 0
HP Envy TouchSmart 15 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

1 - 5 Minuten

Einleitung

Replacing the RAM module might be necessary if you have random crashes and blue screens of death. Be sure to test them before you condemn them to the trash.

  1. XnaKobXZhTP2uhKv

    • Press the battery release tab and the battery will pop up.

  2. mFfrlySBpBmKRUfX

    • Remove the battery from the laptop, it will come out easily.

  3. eWgyA6JxEWbReXu6
    eWgyA6JxEWbReXu6
    OdkSRIJVSZ1Jrd5P

    • Remove the single screw holding the accessory plate. This is a PH0 2.0x2.5 screw.

  4. UthonsRSXpVxGeLq
    UthonsRSXpVxGeLq
    eZDUKjfmqJgka4HW
    IiS23lEg5tTYtWnT

    • Pry the accessory plate up from the back of the laptop by applying force upwards where the screw was removed.

  5. SLXHicvUH2PmKYdv
    SLXHicvUH2PmKYdv
    U6BNWKsLEOX22WmD

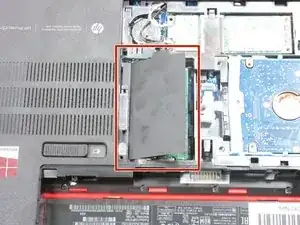

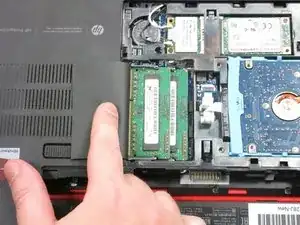

    • Hold back the covering to reveal the RAM modules.

  6. gMNj2TsCSwVimgFZ

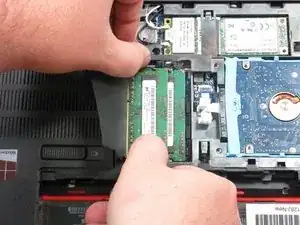

    • Press the clips on the edges of the RAM modules outward to pop them out.

  7. ITAtLpGYEGwPQkdG
    ITAtLpGYEGwPQkdG
    eaqb1rIDQcWiiXJS
    JDTgTJaNEkeyMQ3V

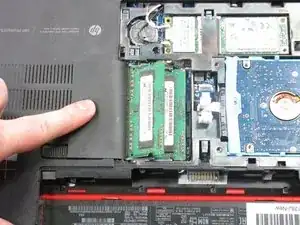

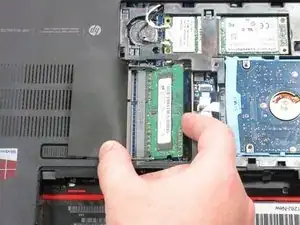

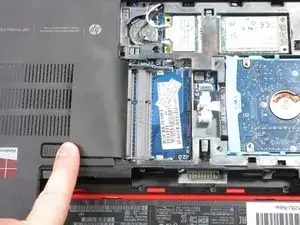

    • You can now remove the RAM modules you need to replace. You can replace the top one, the bottom one, or both if needed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
