HP Envy TouchSmart 4-1215dx Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

A guide on how to properly remove and replace the battery on the HP Envy TouchSmart 4-1215dx.

  1. 2PRHsYfrcIbC6rdV
    2PRHsYfrcIbC6rdV
    LCvWLEQWyJOHBSLd

    • Remove the thirteen Phillips #0 screws.

  2. 5nGJJcmMEp5sWaPk
    5nGJJcmMEp5sWaPk
    2TBqeqjlaTGuParW

    • Pull the panel up and off to remove from the laptop.

  3. SD4OF6EqHjZXvYSy
    SD4OF6EqHjZXvYSy
    xVDhUEJvg2HZcBhX

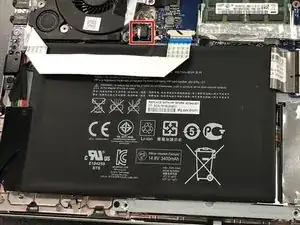

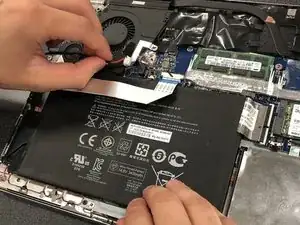

    • Unplug the battery from the motherboard.

  4. IWEqnLLUdGR1muPV
    IWEqnLLUdGR1muPV
    ceOJlEtZfsOMsixM

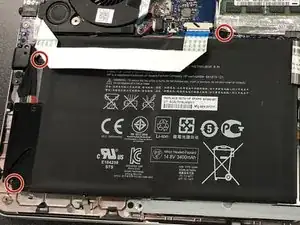

    • Remove the three Phillips #0 screws from the battery.

    • Pull the battery out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
