This is a guide for replacing the display on an HP Envy TouchSmart 4-1215dx. The display outputs text and graphics that the computer makes. If you are experiencing distorted images, you may want to replace your display. Before replacing, look at the troubleshooting page to see if your problem can be fixed without replacing: HP Envy Touchsmart 4-1215dx Troubleshooting. If your display is shattered, you should cover it with tape before removing it.
-
-

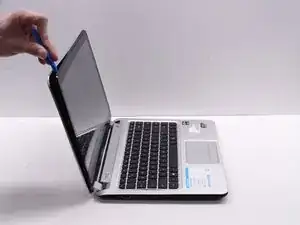

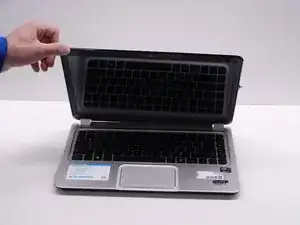

Close the laptop so the front is facing you.
-

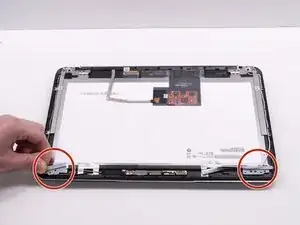

Remove the four 3 mm screws from the two brackets at the front using a Phillips #0 screwdriver.
-
Remove the brackets.
-
-
-

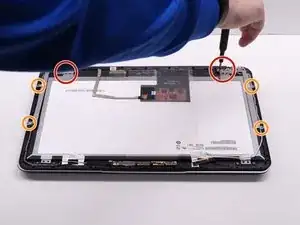

Remove the 3 mm screws from the back brackets using a Phillips #0 screwdriver.
-
Remove the 1 mm screws with a Phillips #00 screwdriver.
-

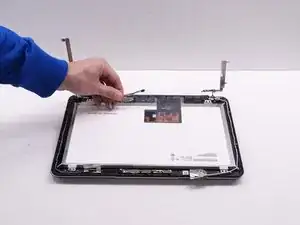

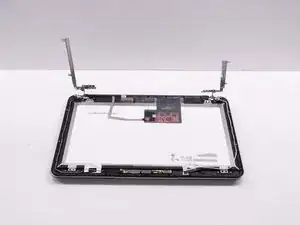

Lift up the display until the brackets are sticking straight up.
-
-
-

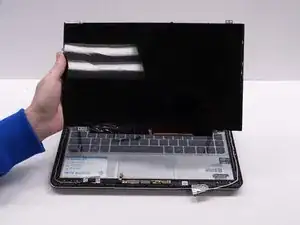

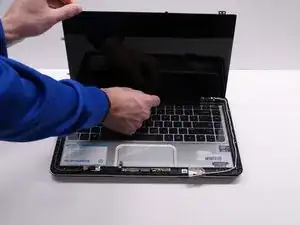

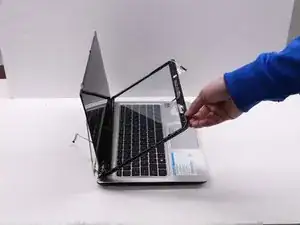

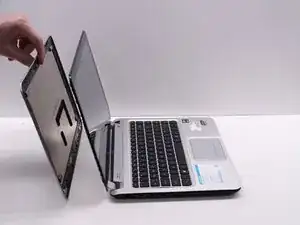

Lift the display up separately from the screen.
-

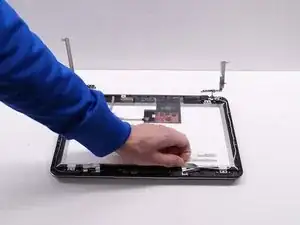

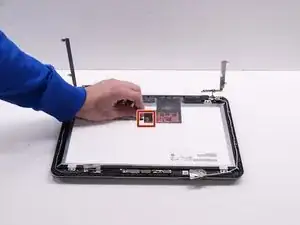

Peel off the orange tape at the bottom of the display connecting to the laptop.
-
To reassemble your device, follow these instructions in reverse order.
