HP Envy TouchSmart 4-1215dx Fan Replacement

Geschrieben von: Torrance Walker
  • Kommentare: 0
HP Envy TouchSmart 4-1215dx Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 - 4 Minuten

Einleitung

A guide on how to properly remove and replace the fan in the HP Envy TouchSmart 4-1215dx.

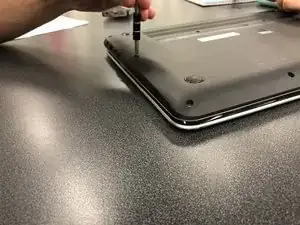

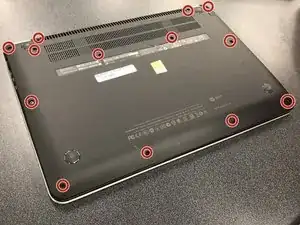

  1. 2PRHsYfrcIbC6rdV
    2PRHsYfrcIbC6rdV
    LCvWLEQWyJOHBSLd

    • Remove the thirteen Phillips #0 screws.

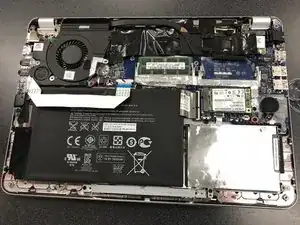

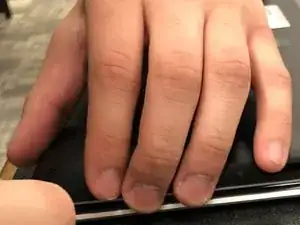

  2. 5nGJJcmMEp5sWaPk
    5nGJJcmMEp5sWaPk
    2TBqeqjlaTGuParW

    • Pull the panel up and off to remove from the laptop.

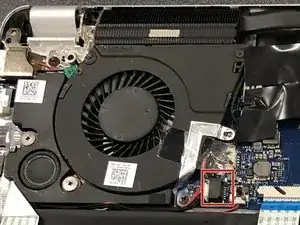

  3. LyuLCOjS3RATJhQO

    • Unplug the fan from the motherboard.

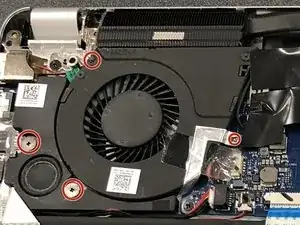

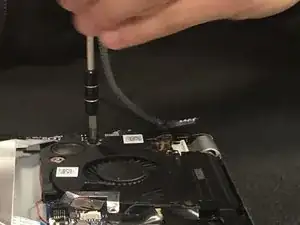

  4. mlfRydPmKuuge6Wq
    mlfRydPmKuuge6Wq
    ItBRFkFUDjtwUs2X

    • Remove the four Phillips #0 screws holding in the fan.

    • Pull out the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
