HP Envy TouchSmart 4-1215dx Heat Sink Replacement

Geschrieben von: Kristen Gismondi
  • Kommentare: 0
HP Envy TouchSmart 4-1215dx Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

  1. 2PRHsYfrcIbC6rdV
    2PRHsYfrcIbC6rdV
    LCvWLEQWyJOHBSLd

    • Remove the thirteen Phillips #0 screws.

  2. 5nGJJcmMEp5sWaPk
    5nGJJcmMEp5sWaPk
    2TBqeqjlaTGuParW

    • Pull the panel up and off to remove from the laptop.

  3. LyuLCOjS3RATJhQO

    • Unplug the fan from the motherboard.

  4. mlfRydPmKuuge6Wq
    mlfRydPmKuuge6Wq
    ItBRFkFUDjtwUs2X

    • Remove the four Phillips #0 screws holding in the fan.

    • Pull out the fan.

  5. Cg3ONT6CGkZQqukX

    • Remove four screws from the heat sink using a Phillips #0 screwdriver.

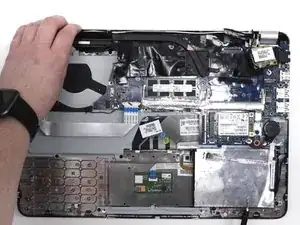

  6. xgUJPXpBnPpo6h2n

    • Gently lift the heat sink from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
