Einleitung

This guide will walk you through the process of replacing a broken motherboard in the HP Envy TouchSmart m7 k010dx.

  1. 6VaZF4XUReShfOfJ
    6VaZF4XUReShfOfJ
    FNjs1OsyUj6IJLDm
    RZXlGYIFEaGYlLDE
    • Turn your computer over so that the bottom is facing up.

    • Slide the left black switch towards center.

    • You should see an unlock image exposed to the left of switch if done correctly.

  2. DFcJILaNDvEkSceE
    DFcJILaNDvEkSceE
    bFEQFglOgKGBsGrg
    • Slide the right black switch towards center to release the battery.

  3. PKoxeGPsmXNoZgRA
    PKoxeGPsmXNoZgRA
    SsIq6dKsIkIPOoLg
    • Pivot the loose edge of the battery closes to you by pushing it toward the back of the computer.

    • The battery should slide out freely.

    • If battery is not pivoted before sliding out, you risk breaking interlocking tabs on the battery or computer.

  4. Tqw5NrhlZYqZiqlV
    Tqw5NrhlZYqZiqlV
    UQmVLFh1Fi6TKEHa
    bQ6H2N6qNebLNXME
    • With the computer turned over use a nylon spudger to pry the rectangular pads off to reveal two hidden screws.

    • Using a Phillips #0 screwdriver, remove the screw that is beneath the black rubber pad, as well as the other holding down the black corner plastic pieces on both the left and right sides.

  5. 1A5QjD6PWjyK1STL
    • Use a plastic opening tool to pop the corners off by wedging between casing. Do this for both legs as depicted in the picture.

  6. cmRmdZFEX64GnXwv
    cmRmdZFEX64GnXwv
    ABMQVqD4DcPiwHqn
    mNVAWViakpLjgNEu
    • Using the Phillips #0 screwdriver, remove the screw in the center of the computer, and to the right of the Beats logo.

    • Use your fingernails to pull out the optical drive. It will have some resistance to start, but will come out easily afterwards.

  7. XbdEThdgaYfWayZi
    XbdEThdgaYfWayZi
    gdunHZdKXjLkkUoA
    • Using a JIS #00 screwdriver, remove the two screws that were revealed when the optical drive was removed.

    • Use a Phillips #0 screwdriver to remove all screws that are visible on the bottom.

    • There is an oval tab near the center of the laptop, use the flat end of a nylon spudger to wedge it free to reveal another Phillips #0 screw.

  8. sDswLXaGZ3IMhGVo
    sDswLXaGZ3IMhGVo
    dQam3RZji4muOSdG
    RDpuXZWj4RVQaVUc
    • Open up the laptop and set it down normally.

    • Use a credit card or spudger to wedge between the top and bottom keyboard casing.

    • Slide the card all the way around the laptop, making sure to pop free all tabs.

  9. rufJAJ6gkpxA4Y1a
    rufJAJ6gkpxA4Y1a
    bhZbsnKdlVlT4ERt
    • Place the computer on the backside of the screen, so that the bottom of it is pointing up into the air.

    • You may want to place a rag over the screen so that if the front panel touches it while being removed, no damage is caused.

    • Carefully begin to separate the top case from the bottom case, as if you are opening it like a book from the edge nearest the touch pad.

  10. o5KAL5WZh6Zaoph6
    o5KAL5WZh6Zaoph6
    TDnWADn4WFGmxrHf
    Cd6jnXeIr1SSGAbi
    • The two panels are connected with 4 flexible electrical ribbon strips. The ribbon strips have a locking tab that will need to be disengaged prior to removal. Using fingers, begin by removing the two strips nearest to the opening.

    • Picture 3 shows the tab unlocked

  11. sx5RdoFRNhUncxjs
    sx5RdoFRNhUncxjs
    PH2HA1g1RVYMEbsC
    • With the two panels now separated, you can see the other two strips towards the back of the computer. With finger, carefully release each strip from the locking tab.

    • Once all are unplugged, carefully remove the top case.

  12. PIRK5Iccq2AwCBBr
    • There is a series of tabs that hold ribbon strips around the outside of the motherboard. Remove all of the tabs as you did when removing the front panel.

    • To disconnect the 3 plugs, use your fingernails or the spudger to pry them free.

    • Some of these connections may be covered with tape that will need to be removed to gain access to the tab.

  13. 6vO1oPnHswTl3Bb2
    6vO1oPnHswTl3Bb2
    eWtWXf1jaPpOFGGT
    qgJJayArCXDFtaW3

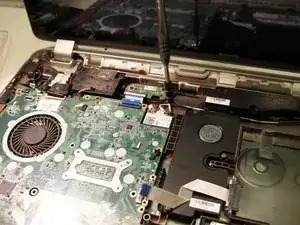

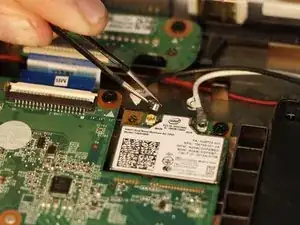

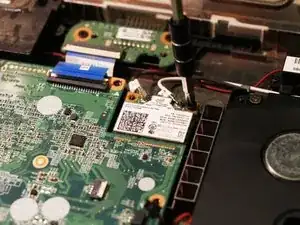

    • In the top right of the motherboard is the wireless card, which is separate from the motherboard.

    • Remove the one screw on it and unplug the two antennae, then pop it up and pull it out gently.

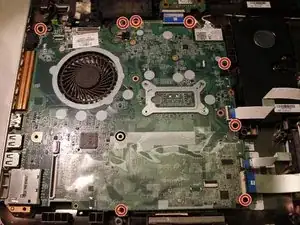

  14. VGlRSVncLFVfiGMS
    • Remove all screws around the outside of the motherboard.

    • Pop the motherboard up, then gently remove it.

  15. Li2m3WZVjQJvWgmd
    Li2m3WZVjQJvWgmd
    UkDb1eCmtPDVMUV1
    CSP2ciUKtACmeF3v

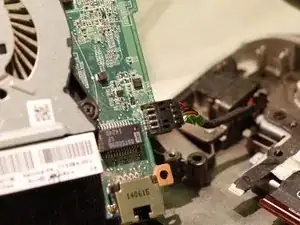

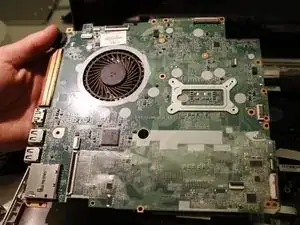

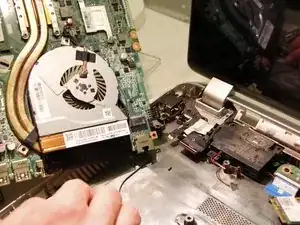

    • Flip the motherboard over to find the power connection.

    • Remove the connection.

Abschluss

To reassemble your device, follow these instructions in reverse order.
