HP Envy Ultrabook 4-1015dx Cooling Fan Replacement

Geschrieben von: Eve Wyman
  • Kommentare: 0
HP Envy Ultrabook 4-1015dx Cooling Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

13

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will teach you how to repair or replace the cooling fan in the HP Envy Ultrabook 4-1015dx. This process is also a prerequisite for replacing the keyboard.

  1. wQjtqnrAY54kOjs2

    • Make sure that the device is turned off and that all external devices are removed.

  2. BLEtOc2UUManHXKs

    • Flip the device over so that the back plate is facing upwards.

  3. cQYwYWVxLZZnJyxj
    cQYwYWVxLZZnJyxj
    fepEnfE6W3efhuv2

    • Using a small (size 0) Phillips head screwdriver, remove the twelve 5.5 mm external Phillips head screws that connect the back plate to the device.

    • Make sure to set the screws aside in a safe place so that you do not lose them, as they will be needed to reattach the backplate later.

  4. aWSFZfdqAV1MYftF
    aWSFZfdqAV1MYftF
    oyD4VRExiPni3eW5

    • Using the plastic opening tool, gently pry off the back plate from the device.

  5. HfVih1VMEqcu6625
    HfVih1VMEqcu6625
    tQNhM3KyILxNWWKI

    • The large black box with the white warning images is the battery.

    • Move the ribbon cable so that it is no longer on top of the battery.

  6. EfQ6cV5UqgMD4cTH
    EfQ6cV5UqgMD4cTH
    VmZPjRK6nq5VGHZQ

    • Using a small (size 0) Phillips head screwdriver, remove the three 3.5 mm Phillips head internal screws that hold the battery in place.

    • Make sure not to lose these internal screws; they will later be used to reattach the battery.

  7. JBRs5EEeEoeHFAxm
    JBRs5EEeEoeHFAxm
    3xKQHKFChfFTXgWW

    • Lift up the battery and remove it from the slot as shown.

  8. 43JVdV1IhyvAAMIA
    43JVdV1IhyvAAMIA
    w5pOqPdothBCGFYD
    KiRnxAhxWCrosnht

    • Use the plastic opening tool to disconnect the battery cable.

  9. WkIUbUu5i3EiF55X

    • Lift up the battery and remove it from the device.

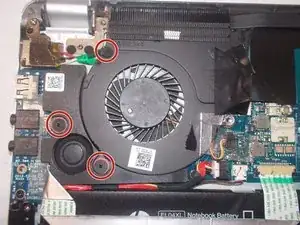

  10. As2AvJ2d2hX4QtdI
    As2AvJ2d2hX4QtdI

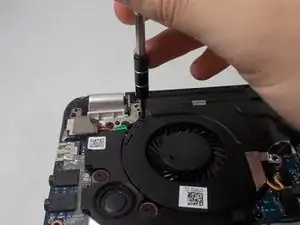

    5ASIqOTNKLk2gAcp

    • Remove the screws that secure the top cover of the fan.

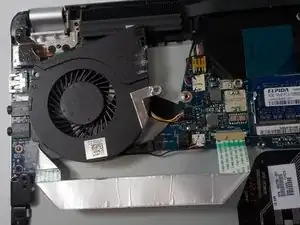

  11. KYDSv1R6slPFcYqg

    • Lift the fan up and remove it gently.

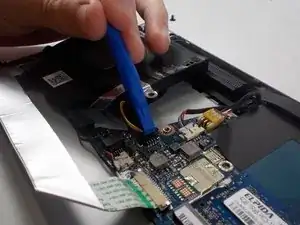

  12. PP3vpOBDm2DK2Ogn

    • Remove the fan cable with the plastic opening tool.

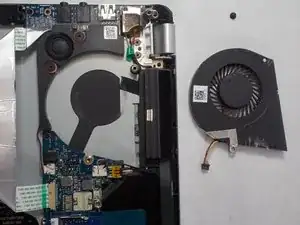

  13. GS2eCtmpwVUTWTKU

    • Remove the fan from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
